SPK
Panel Mounted Speaker Max.90dB
| Product Feature: | 15 Built-in Sounds (Max.90dB at 1m) |
| Voltage: | DC:12V,24VAC:110V,220V |
| Dimension: | Ø80×80mmDepth : 75 |
| Materials: | Housing-ABSCover-ABS |
| Protection rating: | IP23 |
Product Feature
- General compatibility by adopting general equipment (62×62mm) mount holes
- Allowing volume control without dismantling the device
- Various sound patterns such as warning sound, melodies, and alarms can be chosen depending on the message use case

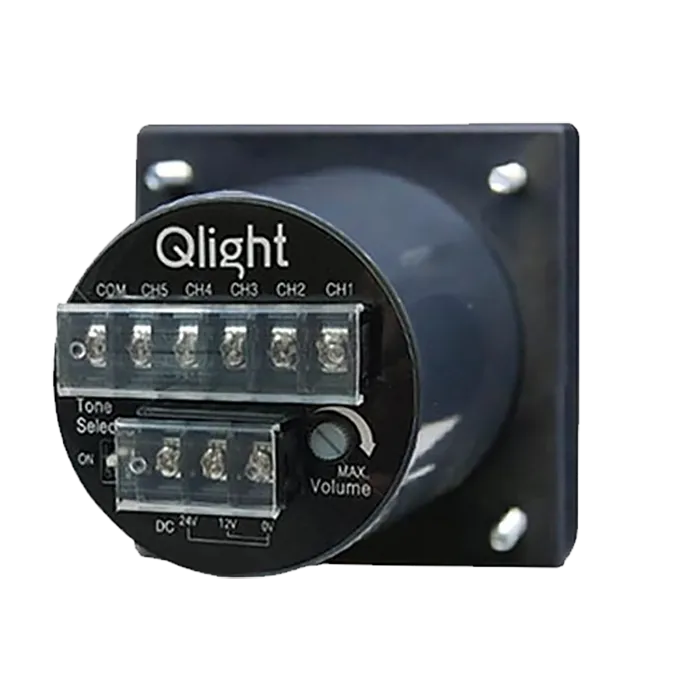

- Wiring terminal on the back side of the product
- Ambient operating temperature : -25°C to +50°C
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Sound pattern and volume | Certificates | Weight |
|---|---|---|---|---|---|
| SPK | DC12V | 290mA | · WS-5 Warnings: Max.90dB · WM-5 Melodies: Max.90dB · WA-5 Alarms: Max.90dB |  | 0.19kg |
| DC24V | 200mA | ||||
| AC110V | 35mA | 0.21kg | |||
| AC220V | 20mA |
※ CE compliant: DC24V
※ Max.built-in volume feature is based on WS-Ch1 / WM-Ch4 / WA-Ch4.
Sound Tone Combination of Standard Product
5 Warning Sounds
Fire.A-ANG
Channel.1
Emergency WA-U(Yelp)
Channel.2
Ambulance PI-PO(Hi-low)
Channel.3
Machinery Fault
Channel.4
High Expansion
Channel.5
5 Melodies
Sweet Home
Channel.1
For Elise
Channel.2
Cuckoo's Waltz
Channel.3
Piano Sonata
Channel.4
Turkish March
Channel.5
5 Alarms
Beep Intermittent
Channel.1
Door Chime
Channel.2
Phone Ring
Channel.3
PI.PI.PI. Short Interval
Channel.4
Tripping Beat
Channel.5
Download
PDF Catalogue
Operating Manual
External View Drawing(PDF)
External View Drawing (Auto-CAD)
3D drawing (STEP)
