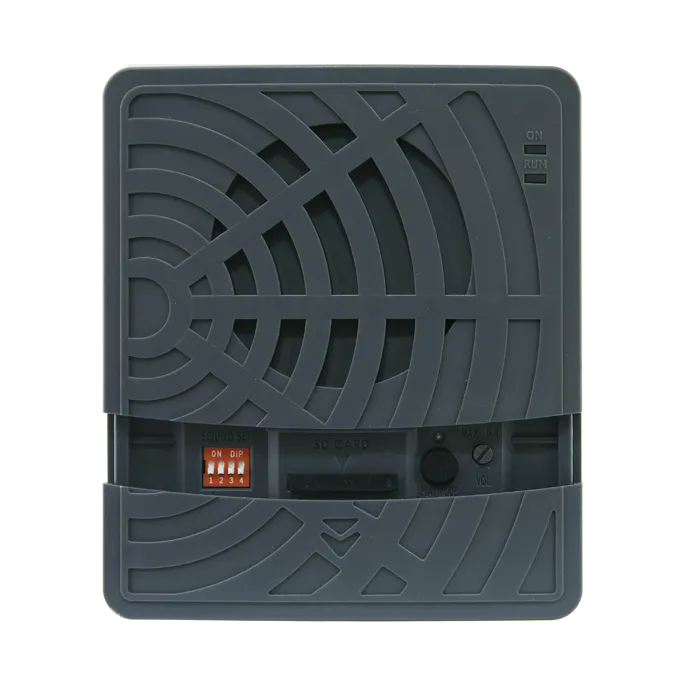

QMPS-N

Panel Mount Audible Alarm

Product Feature:	30 Built-in Sounds (Max. 98dB at 1m)
Voltage:	DC:12V-24VAC:110V-220V
Dimension:	□120×120mmDepth : 68
Materials:	ABS
Protection rating:	IP54

Product Feature

Can prevent cross talk of different voice environments by selecting an audio signal fit for the specific environment and condition
Offers both Binary and Bit input mode options with 30 pre-recorded sounds
Binary input mode has built-in 30 messages that can be played with switch for sound selection
Bit input mode is organized into 6 groups of 5 sound tones for a total of 30 sound tone options. Playback can be selected from one of the 5 tones in each group
Volume adjustment and sound selection switches located inside the unit
Sound volume : Max. 95dB at 1m
Materials : Housing-ABS, Cover-ABS
Ambient operating temperature : -25°C to +50°C
Protection rating : IP54
Certificates : CE Compliant
Compliant with RoHS directive

Product Specifications

Model number	Voltage	Current	Volume	Input Method /No.of Ch	Certificates	Weight
QMPS-N Built-in standard sound	DC12V-24V	Max.380mA	• Built-in standard sound • Built-in sound:Max.95dB (Based on Ch17)	Bit Input : 5Ch Binary Input : 30Ch		0.35kg
QMPS-N Built-in standard sound	AC110V-220V	Max.130mA		Bit Input : 5Ch Binary Input : 30Ch		0.53kg

※ DC type model has a free-voltage range of 10V-30V.

※ AC type model has a free-voltage range of 100V-240V.

※ CE compliant: DC12V-24V

Sound Tone Combination of Standard Product

5 Warning Sounds

Fire.A-ANG

Channel.1

Emergency WA-U(Yelp)

Channel.2

Ambulance PI-PO(Hi-low)

Channel.3

Machinery Fault

Channel.4

High Expansion

Channel.5

5 Melodies

Sweet Home

Channel.1

For Elise

Channel.2

Cuckoo's Waltz

Channel.3

Piano Sonata

Channel.4

Turkish March

Channel.5

5 Alarms

Beep Intermittent

Channel.1

Door Chime

Channel.2

Phone Ring

Channel.3

PI.PI.PI. Short Interval

Channel.4

Tripping Beat

Channel.5

5 Special Warning Sounds (1st Group)

Fire.A-ANG

Channel.1

Abandon Alarm

Channel.2

Machinery Fault

Channel.3

High Expansion

Channel.4

7 Short PI. / 1 Long

Channel.5

5 Special Warning Sounds (2nd Group)

Rel rel rel

Channel.1

Slow Ambulance PI-PO

Channel.2

Emergency WA-U(Yelp)

Channel.3

Phone Ring

Channel.4

Fire.A-ANG

Channel.5

5 Special Warning Sounds (3nd Group)

Oit Oit warning sound

Channel.1

Pi o Pi o

Channel.2

Slow Di o Di o

Channel.3

Li long Li ling

Channel.4

911 Siren

Channel.5
