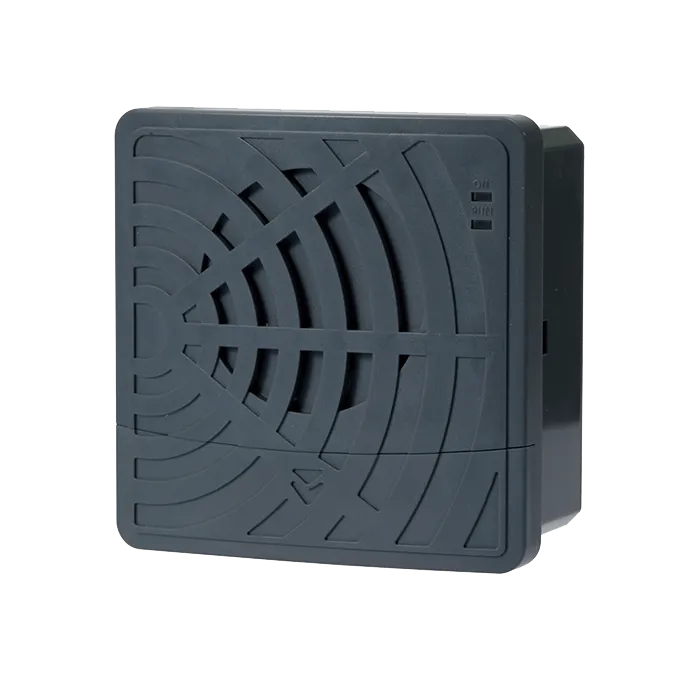

CPK-RS485
Signal phone for RS485 communication panelMax.85dB
| Product Feature: | MP3 File 255 Sounds (Max 85dB at 1m) |
| Voltage: | DC:12V-24V |
| Dimension: | □80×80Depth : 75 |
| Materials: | ABS |
| Protection rating: | IP65 |
Product Feature
- Panel type signal phone that outputs clear and cheerful 8-48Khz MP3 Audioharmony by applying industrial RS485 communication
- Up to 255ea of frame IDs can be set by software manager
- Can select and play 255 songs using RS485 communication
- Save MP3 sound source using USB C-TYPE cable
- Supports 128Mbyte storage capacity (File format: FAT)
- Supports 4 communication speeds: 9600bps, 19200bps, 38400bps, 115200bps
- Material: ABS
- Volume: Max. 85dB at 1m
- Ambient temperature: -25℃-+50℃
- Protection class: IP65
Product Specifications
| Model number | Sound type | dB | Voltage | Current | Certificates | Weight |
|---|---|---|---|---|---|---|
| CPK-RS485 | MP3 File(255 Sounds) | Max. 85dB | DC12-24V | Max.600mA |  | 0.21kg |
※ DC Type allows free voltage with range of 10V-36V.
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
Download
PDF Catalogue
Operating Manual
External View Drawing(PDF)
External View Drawing (Auto-CAD)
3D drawing (STEP)
