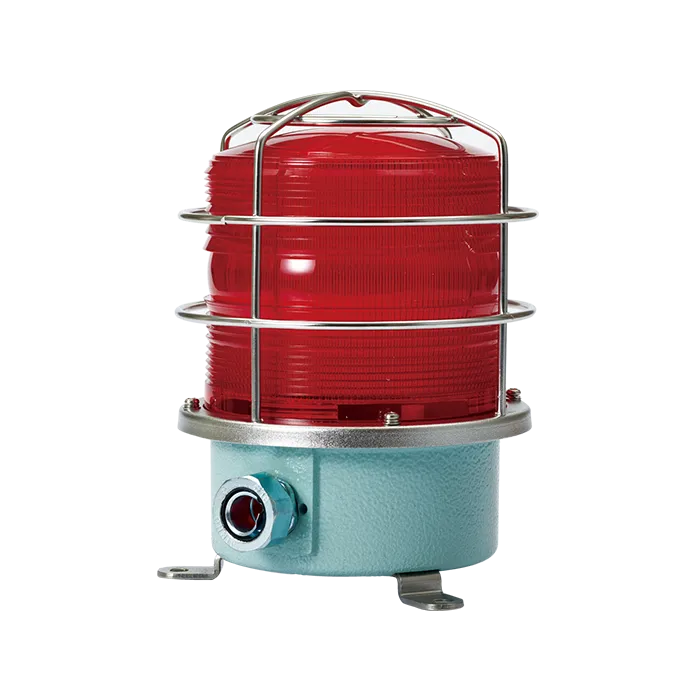

SH2S
Heavy Duty Xenon Strobe Signal Beacons for Marine and Heavy Industry ApplicationsWeatherproof Xenon Beacons / Visual Signal Alarms
| Voltage: | DC:12V-24VAC:110V,220V |
| Dimension: | Lens Diameter : Ø138Height : 198 |
| Materials: | Lens-PCHousing-Al, STS316LProtection cage-STS316LBracket-STS316L |
| Protection rating: | IP66 |
Product Feature
- Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Terminals located inside the terminal box or product
- Convenient lamp change with connector type connection structure
- Flashing rate : 60-80 flashes/min
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Ambient operation temperature : -30°C to +50°C
- Cable entry :1/2″PF
- Certificates : CE
Product Specifications
| Model number | Voltage | Current | Xenon lamp | Certificates | Certificates | ||
|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||
SH2S SH2SP SH2TS SH2TSP | DC12V-24V | Max.1.3A | 200V-550V | EUB0641-1A(G) U type | 48 |  |  R-Red A-Amber G-Green B-Blue |
| AC110V | 160mA | ||||||
| AC220V | 140mA | ||||||
※ CE compliant: DC12V/24V
