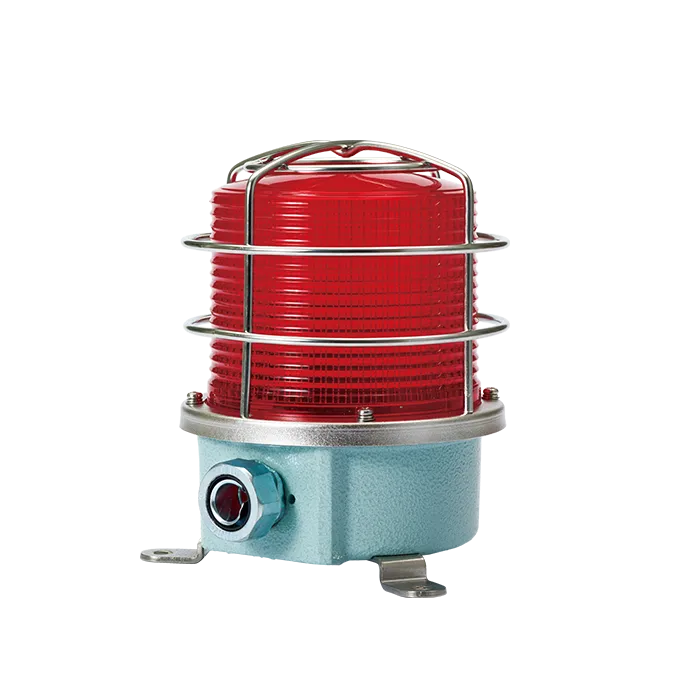

SH1S
Heavy-Duty Xenon Strobe Signal Beacons for Vessels and Heavy Industry ApplicationsWeatherproof Xenon Beacons / Visual Signal Alarms
| Voltage: | DC:12V-24VAC:110V,220V |
| Dimension: | Lens Diameter : Ø119Height : 168 |
| Materials: | Lens-PCHousing-Al, SUSProtection cage-STS316LBracket-STS316L |
| Protection rating: | IP66 |
Product Feature
- Aluminum housing and polycarbonate lens material provides excellent impact resistance under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Terminals located inside the product
- Convenient lamp change with connector type connection structure
- Flashing rate : 60-80 flashes/min
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Ambient operation temperature : -30°C to +50°C
- Cable entry : 1/2" PF
- Certificates : CCS, CE
Product Specifications
| Model number | Voltage | Current | Xenon lamp | Certificates | Color | ||
|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||
SH1S SH1S-SUS SH1SP SH1SP-SUS SH1TS SH1TSP | DC12V-24V | Max.1.3A | 200V-550V | EUB0641-1A(G) U type | 48 |  |  R-Red A-Amber G-Green  B-Blue |
| AC110V | 160mA | ||||||
| AC220V | 140mA | ||||||
※ CE compliant: DC12V-24V, CCS(SH1S / SH1SP only)
