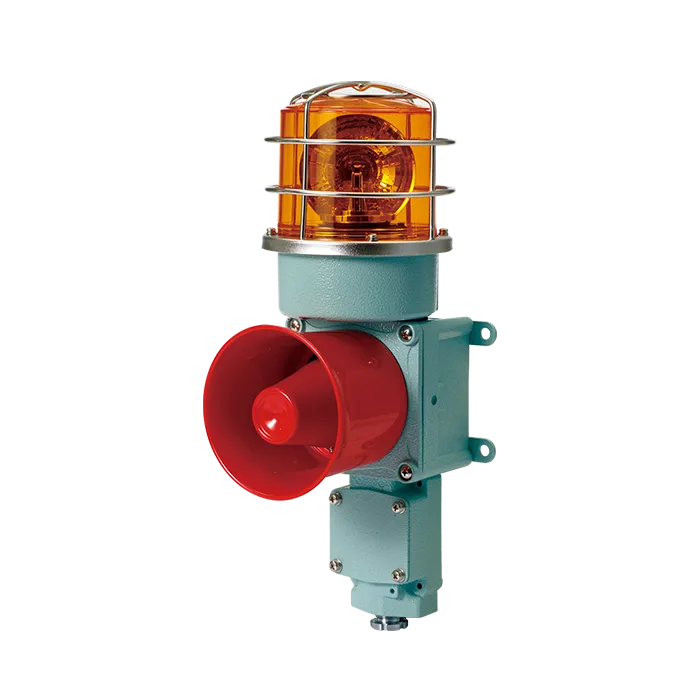

SEDLR
Signal Beacon and Electronic Sounder Combinations for Vessels and Heavy Industry ApplicationsLED Revolving Signal Beacon & Electronic Sounder Combination Max.114dB
| Product Feature: | 20 Built-in Sounds (Max.114dB at 1m), 5 User-Defined Voice (108-113dB at 1m) |
| Voltage: | DC:12V,24VAC:110V,220V |
| Dimension: | Lens Diameter : Ø119Height : 380Depth : 175 |
| Materials: | Lens-PCHousing-Al |
| Protection rating: | IP66 |
Product Feature
- Wall mount signal beacon & electronic sounder combinations for marine and heavy industries applications
- Aluminum housing and polycarbonate lens material provides excellent impact and shock resistance
- Excellent hermetic structure that block water and dust
- Attached terminal box enables easy wiring
- Can adjust sound volume and select sound pattern with the switches built inside the products
- Cable entry : 1/2″ PF
- Materials : Lens-PC, Housing-Al, Protection cage-STS316L, reflector-PC
- Standard housing color : MUNSELL No. 7.5GBG 7/2
- Revolving speed : 120-140RPM
- Ambient operating temperature : -20°C to + 50°C
- Protection rating : IP66
Product Specifications
| Model number | Voltage | Current | Sound pattern and volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| SEDLR SEDLRP | DC12V | 1.7A | ·WS-5 Warning sounds: Max.114dB ·WP-5 Special warning sounds : Max.114dB ·WM-5 Melodies: Max.110dB ·WA-5 Alarms: Max.114dB ·WV-5 Customizable voices: 108-113dB |  | · SEDLR DC-3.09kg AC-3.86kg · SEDLRP DC-3.34kg AC-4.11kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 1.3A | |||||
| AC110V | 330mA | |||||
| AC220V | 180mA |
Sound Tone Combination of Standard Product
Support Customizable Voices(Channel1~5)
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machinery Fault
High Expansion
7 Short PI. / 1 Long
