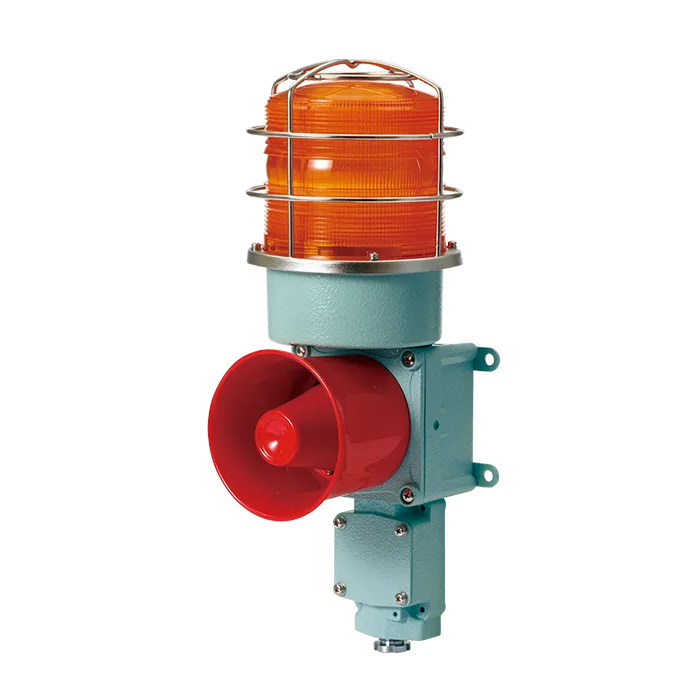

SDS
Signal Beacon and Electronic Sounder Combinations for Vessels and Heavy Industry ApplicationsXenon Lamp Strobe Signal Beacon and Electronic Sounder Combination Max.114dB
| Product Feature: | 20 Built-in Sounds (Max.114dB at 1m), 5 User-Defined Voice (108-113dB at 1m) |
| Voltage: | DC:12V,24VAC:110V,220V |
| Dimension: | Lens Diameter : Ø138Height : 410Depth : 175 |
| Materials: | Lens-PCHousing-Al |
| Protection rating: | IP66 |
Product Feature
- Wall mount signal beacon & electronic sounder combinations for marine and heavy industries applications
- Convenient lamp exchange by adopting a connector type lamp installation
- Aluminum housing and polycarbonate lens material provides excellent impact and shock resistance
- Excellent hermetic structure that block water and dust
- Attached terminal box enables easy wiring
- Can adjust sound volume and select sound pattern with the switches built inside the products
- Cable entry : 1/2″ PF
- Materials : Lens-PC, Housing-Al, Protection cage-STS316L
- Standard housing color : MUNSELL No. 7.5GBG 7/2
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP66
Product Specifications
| Model number | Voltage | Current | Xenon lamp | Sound pattern and volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| SDS SDSP | DC12V | 2.5A | 200V-550V | EUB0641-1A(G) U type | 48 | ·WS-5 Warning sounds: Max.114dB ·WP-5 Special warning sounds: Max.114dB ·WM-5 Melodies: Max.110dB ·WA-5 Alarms: Max.114dB ·WV-5 Customizable voices: 108-113dB | - | · SDS DC-3.28kg AC-3.66kg · SDSP DC-3.57kg AC-3.95kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 1.4A | ||||||||
| AC110V | 360mA | ||||||||
| AC220V | 220mA | ||||||||
Sound Tone Combination of Standard Product
Support Customizable Voices(Channel1~5)
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machinery Fault
High Expansion
7 Short PI. / 1 Long
