SRN

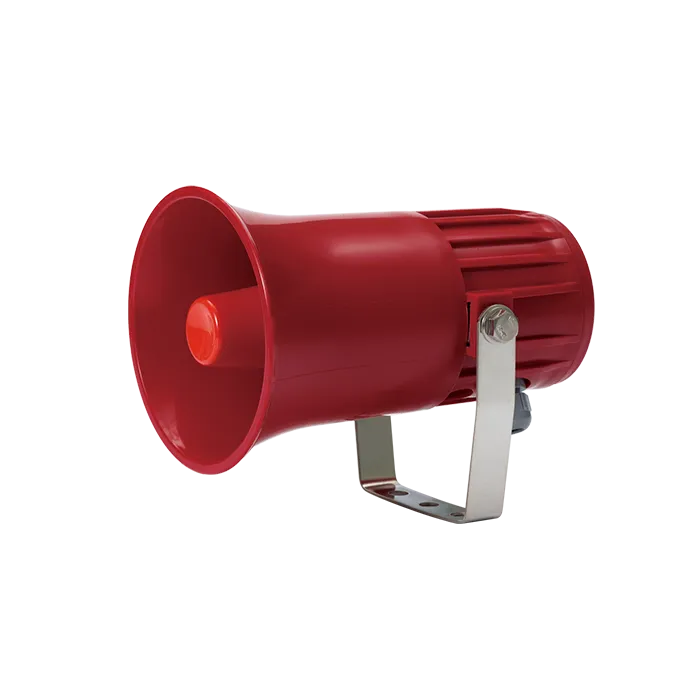

General Electric HornMax.108dB
| Product Feature: | 15 Built-in Sounds (Max. 108dB at 1m), 5 User-defined Voice (Max. 98dB at 1m) |
| Voltage: | DC:12V-24VAC:110V,220V |
| Dimension: | Horn Diameter : Ø125Length : 185 |
| Materials: | ABS |
| Protection rating: | IP55 |
Product Feature
- Cost effective model with high signal sound
- A variety of sound selections between warning sounds, alarm sounds, melodies and voice messages to fit your sophisticated application needs
- User defined voice signal type(WV) shall be provided upon request
- Can adjust sound volume with the switch built inside the unit
- Materials : Housing-ABS(Standard Color : Red)
- Ambient operating temperature : -25°C to +50°C
- Protection rating : IP55
- Certificates : CE Compliant
Product Specifications
| Model number | Built-in Sound | Volume | Voltage | Current | Certificates | Weight | |
|---|---|---|---|---|---|---|---|
| SRN | WS | 5 Warning sounds | Max.108dB | DC12V-24V AC110V AC220V | Max.410mA 85mA 60mA |  | DC- 0.72kg AC- 0.98kg |
| WM | 5 Melodies | Max.108dB | |||||
| WA | 5 Alarms | Max.105dB | |||||
| WV | 5 Customizable sounds | 95~102dB | |||||
※ DC type model has a free-voltage range of 10V-30V.
※ CE compliant: DC12V-24V
※ Max.built-in volume feature is based on WS-Ch3 / WM-Ch4 / WA-Ch4.
※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
Support Customizable Voices(Channel1~5)
5 Warning Sounds
Fire.A-ANG
Channel.1
Emergency WA-U(Yelp)
Channel.2
Ambulance PI-PO(Hi-low)
Channel.3
Machinery Fault
Channel.4
High Expansion
Channel.5
5 Melodies
Sweet Home
Channel.1
For Elise
Channel.2
Cuckoo's Waltz
Channel.3
Piano Sonata
Channel.4
Turkish March
Channel.5
5 Alarms
Beep Intermittent
Channel.1
Door Chime
Channel.2
Phone Ring
Channel.3
PI.PI.PI. Short Interval
Channel.4
Tripping Beat
Channel.5
