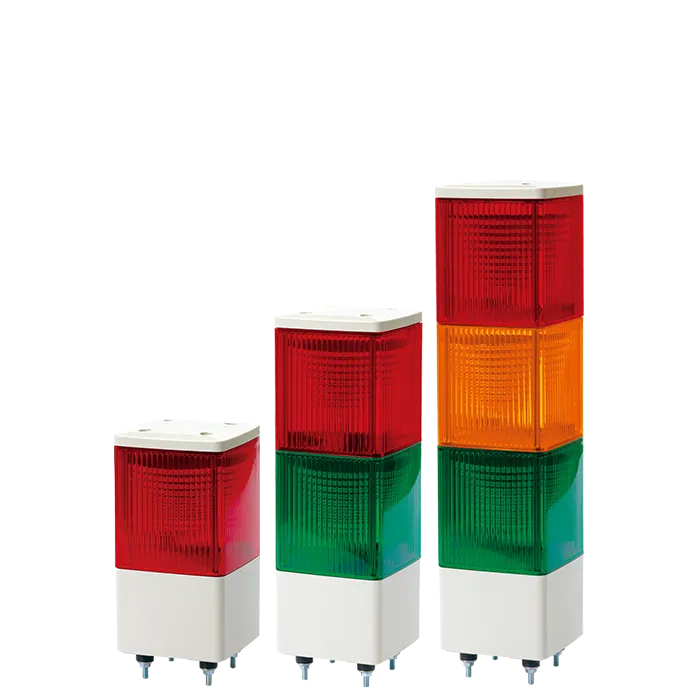

SJL
LED Steady/Flashing Tower Signal Lights Max.90dB
| Product Feature: | Buzzer volume fixed type (Max. 90dB at 1m) : optionally available |
| Voltage: | DC:12V-24VAC:110V,220V |
| Dimension: | Cubic : Ø95×95Height : 186-378 |
| Materials: | Lens-ASBody-ABSReflector-Heat resistant ABS |
| Protection rating: | IP44 |
Product Feature
- Beautiful appearance from stacking 95×95mm cubed tower lights
- Multi signal transmission in space of 1 signal light
- Strong LED signal light emitted through the 96mm height diffusion lens
- Built-in buzzer available (Volume Max. 90dB at 1m)
- Fixed lens color
- Standard color
1Layer - R-Red
2Layers - R-Red G-Green
3Layers - R-Red A-Amber G-Green - Flashing rate : 60-80 flashes/min
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Ambient operation temperature : -30°C to +50°C
- Protection rating : IP44
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Layer | Voltage | Certificates | Weight | Color |
|---|---|---|---|---|---|
| SJL | 1 | DC12V~24V | - | 0.63kg |  R-Red |
| AC110V | 0.80kg | ||||
| AC220V | 0.80kg | ||||
| 2 | DC12V~24V | 0.76kg | R-Red G-Green | ||
| AC110V | 1.03kg | ||||
| AC220V | 1.03kg | ||||
| 3 | DC12V~24V | 1.01kg | R-Red A-Amber G-Green | ||
| AC110V | 1.24kg | ||||
| AC220V | 1.24kg |
• Strong LED signal light emitted through the 96mm height diffusion lens
• Fixed lens colors
• Flashing rate: 60-80 flashes/min
• Ambient operation temperature: -30°C to +50°C
• Compliant with RoHS directive
Light source current(based on 1 layer)
Voltage | DC12V~24V | AC110V | AC220V |
|---|---|---|---|
Light source current(1 layer) | Max.185mA | 80mA | 40mA |
| Buzzer current | Max.35mA | 60mA | 30mA |
