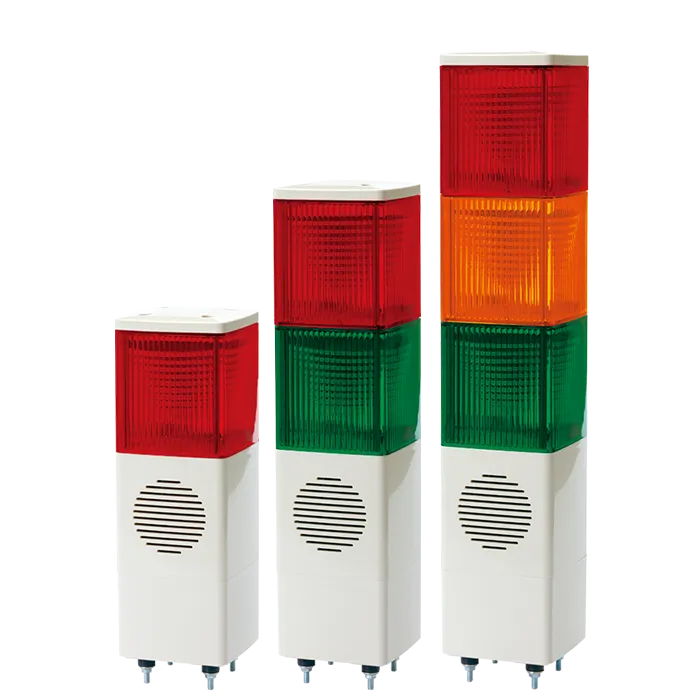

Stackable Cube Tower Lights with Built-in Alarm Max.90dB
| Product Feature: | 15 Built-in Sounds (Max. 90dB at 1m), 5 User-Defined Voices (Max. 80dB at 1m) |
| Voltage: | DC:12V-24VAC:110V,220V |
| Dimension: | Cubic : Ø95×95Height : 282-474 |
| Materials: | Lens-ASBody-ABSReflector-Heat resistant ABS |
| Protection rating: | IP23 |
Product Feature
- Cube-shaped(95×95mm) stacked tower lights and audible alarm combinations
- Diffusion strong light offers long distance transmission of signal light
- Lamp connector fastening structure allows for convenient lamp replacement
- 5 Warning sounds, 5 Melodies, 5 Alarms, and 5 Customizable sounds available
- WV type : Input audio message needs to be provided to us by the customer prior to manufacturing
- Multiple stacked light segments conserves space
- Standard color arrangements are as below :
1 Layer : R-Red
2 Layers : R-Red G-Green
3 Layers : R-Red A-Amber G-Green - Materials : Lens-AS, Body-ABS, Reflector-Heat resistant ABS
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP23
Product Specifications
| Model number | layer | Voltage | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| SJDS | 1 | DC12V-24V | • WS-5 warning sounds: Max.90dB • WM-5 Melodies: Max.90dB • WA-5 Alarms: Max.85dB • WV-5 customizable sounds: 79-85dB | - | 1.25kg |  R-Red |
| AC110V | 1.66kg | |||||
| AC220V | 1.66kg | |||||
| 2 | DC12V-24V | 1.45kg | R-Red G-Green | |||
| AC110V | 1.84kg | |||||
| AC220V | 1.84kg | |||||
| 3 | DC12V-24V | 1.64kg | R-Red A-Amber G-Green | |||
| AC110V | 2.03kg | |||||
| AC220V | 2.03kg |
• Diffusion strong light offers long distance transmission of signal light
• Lamp connector fastening structure allows for convenient lamp replacement
• Flashing rate: 60-80 flashes/min
• Ambient operating temperature: -30°C to +50°C
※ Max.built-in volume feature is based on WS-Ch1 / WM-Ch4 / WA-Ch5.
※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.
※ Please refer to [Sound tone and combination for standard product] on this catalogue for detailed sound tone specification.
Light source/signal sound current(based on 1 layer)
Voltage | DC12V~24V | AC110V | AC220V |
|---|---|---|---|
Light source current(1 layer) | Max. 1.260A | 0.210A | 0.110A |
| Signal sound current | Max. 0.210A | 0.075A | 0.050A |
Sound Tone Combination of Standard Product
Support Customizable Voices(Channel1~5)
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
