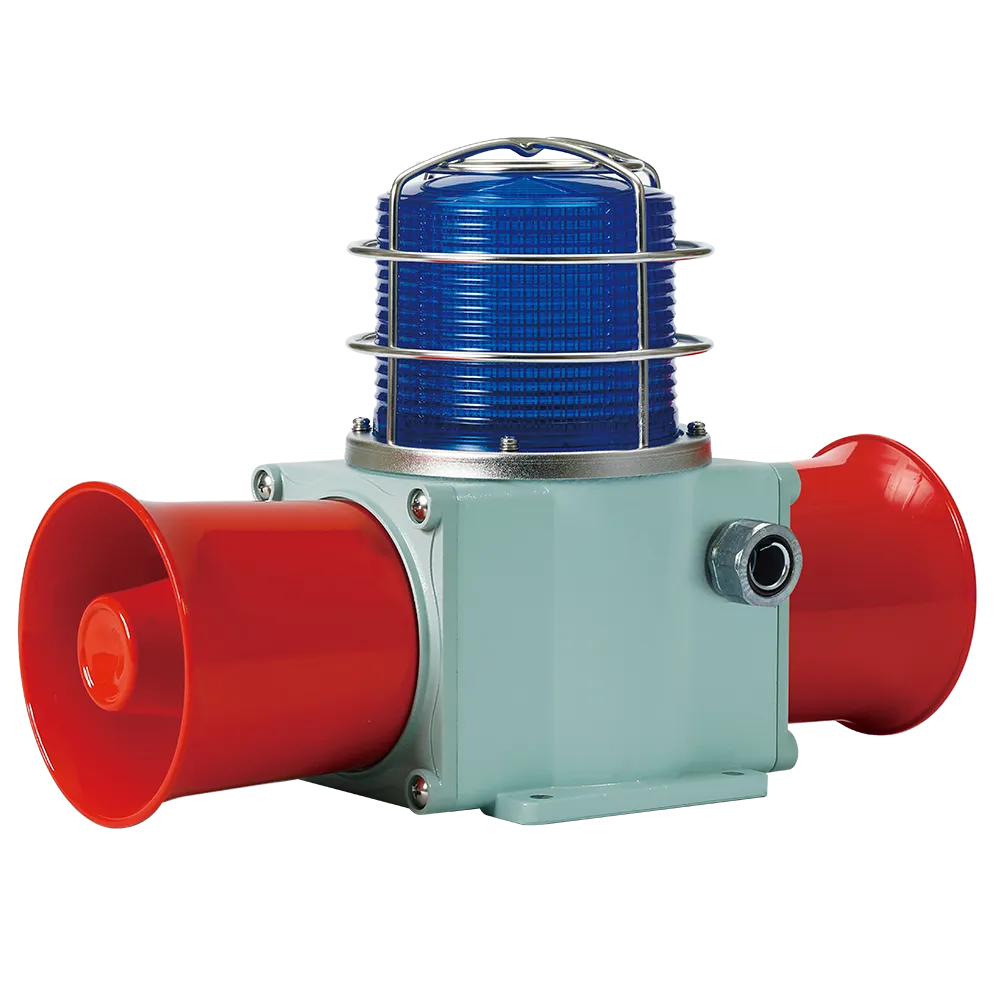

SHD2L
LED Steady/Flashing Signal Beacon & Electronic Sounder Combination Max.114dBx2
| Product Feature: | 20 Built-in Sounds (Max.114dB at 1m)x2, 5 User-Defined Voice (108-113dB at 1m)x2 |
| Voltage: | DC:12V,24VAC:110V,220V |
| Dimension: | Lens Diameter : Ø119Height : 227Length : 343 |
| Materials: | Lens-PCHousing-AlProtection cage-STS316LReflector-PCReflector-Heat resistant ABS |
| Protection rating: | IP66 |
Product Feature
- Warning light and electric horn combination models for vessels and heavy industries applications
- Aluminum housing and polycarbonate lens material provides excellent durability under seismic conditions
- Excellent hermetic structure that blocks water and dust
- Superior impact and shock resistance
- Equipped with a wire guard
- Terminal box located inside the housing
- Can adjust sound volume and select sound pattern with the switches built inside the products
- Uniform and clear light diffusion with multi layered LED light distribution reflector
- Cable entry : 1/2″ PF
- Standard housing color : MUNSELL No. 7.5BG 7/2
- Flashing rate : 60-80 flashes/min(Built-in steady/flashing selection switch)
- Ambient operating temperature : -30°C to +50°C
Product Specifications
| Model number | Voltage | Current | Sound pattern and volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| SHD2L SHD2LP | DC12V | 3.5A | •WS-5 Warning sounds: Max.114dBx2 •WP-5 Special warning sounds: Max.114dBx2 •WM-5 Melodies: Max.110dBx2 •WA-5 Alarms: Max.114dBx2 •WV-5 Customizable voices: Max.108-113dBx2 | - | SHD2L DC-4.07kg AC-4.45kg SHD2LP DC-4.32kg AC-4.70kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 2.2A | |||||
| AC110V | 600mA | |||||
| AC220V | 300mA |
Sound Tone Combination of Standard Product
Support Customizable Voices(Channel1~5)
5 Warning Sounds
Fire.A-ANG
Channel.1
Emergency WA-U(Yelp)
Channel.2
Ambulance PI-PO(Hi-low)
Channel.3
Machinery Fault
Channel.4
High Expansion
Channel.5
5 Melodies
Sweet Home
Channel.1
For Elise
Channel.2
Cuckoo's Waltz
Channel.3
Piano Sonata
Channel.4
Turkish March
Channel.5
5 Alarms
Beep Intermittent
Channel.1
Door Chime
Channel.2
Phone Ring
Channel.3
PI.PI.PI. Short Interval
Channel.4
Tripping Beat
Channel.5
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Channel.1
Abandon Alarm
Channel.2
Machinery Fault
Channel.3
High Expansion
Channel.4
7 Short PI. / 1 Long
Channel.5
