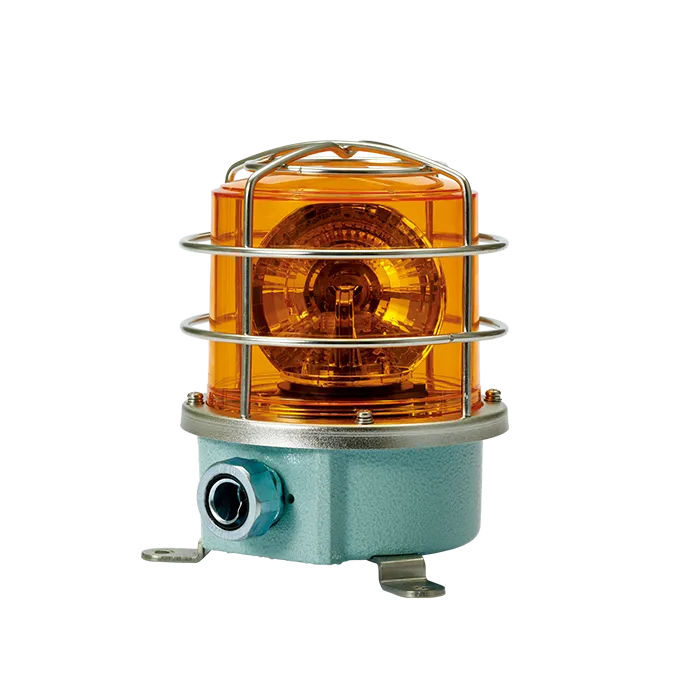

SH1LR
Heavy-Duty LED Revolving Beacons for Vessels and Heavy Industry ApplicationsWeatherproof Revolving Beacons / Visual Signal Alarms
| Voltage: | DC:12V,24VAC:110V,220V |
| Dimension: | Lens Diameter : Ø119Height : 168 |
| Materials: | Lens-PCHousing-Al, SUSProtection cage-STS316LReflector-PCBracket-STS316L |
| Protection rating: | IP66 |
Product Feature
- Features high visibility in all directions with special concentrated LED light structure and multi side reflector
- STS housing provides superior durability and corrosion resistance(SH1LR-SUS, SH1LRP-SUS)
- Excellent hermetic structure that blocks water and dust
- Terminals located inside the product
- Revolving speed : 120-140RPM
- Ambient operation temperature : -20°C to +50°C
- Cable entry : 1/2′′PF
- Housing standard color : MUNSELL No.7.5BG 7/2
- Certificates : CCS
Product Specifications
| Model number | Voltage | Current | Certificates | Color |
|---|---|---|---|---|
SH1LR SH1LR-SUS SH1LRP SH1LRP-SUS SH1TLR SH1TLRP | DC12V | 420mA |  |  R-Red A-Amber G-Green B-Blue |
| DC24V | 260mA | |||
| AC110V | 80mA | |||
| AC220V | 50mA |
※ CCS compliant: SH1LR / SH1LRP only
