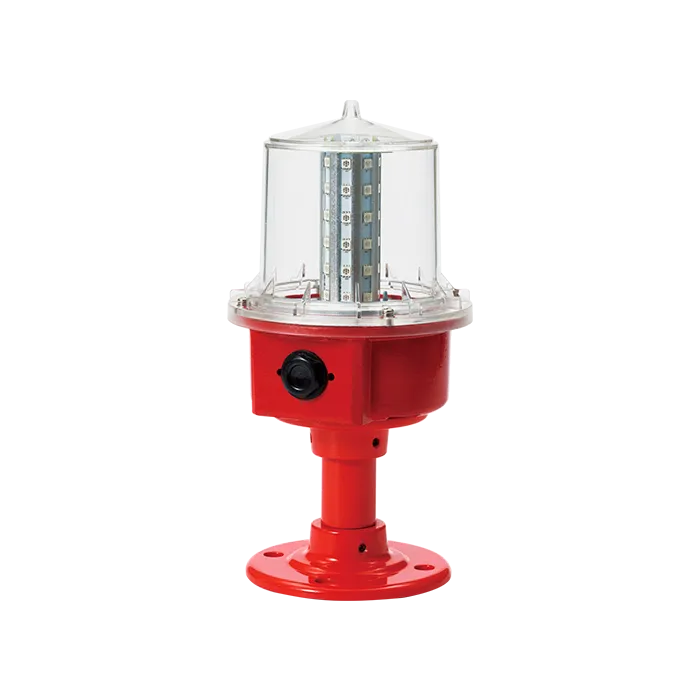

SAOL2/SAOL2P
Low Intensity LED Aviation Obstruction Light
| Product Feature: | Low Intensity LED Steady Type 19cd ±25% |
| Voltage: | DC:12V,24VAC:110V-220V |
| Dimension: | Diameter : Ø139SAOL2 Height : 185SAOL2P Height : 274 |
| Materials: | Lens- PCHousing - AlBracket-STS316LPole-STS |
| Protection rating: | IP66 |
Product Feature
- Low intensity A type aviation obstruction lights are installed onto fixed objects that are less than 150m from the land or water surface
Can choose between self stand type and pole mounting type depending on environment
Terminals located inside the housing for wiring
Product Specifications
| ICAO standard | Low intensity A type | ||
| Light source | High intensity light emtting diodes(LED) | ||
| Light color | Red | ||
| Light function | Steady | ||
| Rated voltage | DC12V, DC24V, AC110V-220V | ||
| Power Consumption | Max.24W | ||
| Standard housing color | Red | Cable entry | Ø20 |
| Materials | Lens-PC, Housing-Al, Bracket-STS316L, Pole-STS | ||
| Protection rating | IP66 | Ambient operating temperature | -30℃ to +50℃ |
| Certificates |  | Luminous intensity | 19cd ±25% |
※ ICAO standard: DC24V, AC110V-220V
