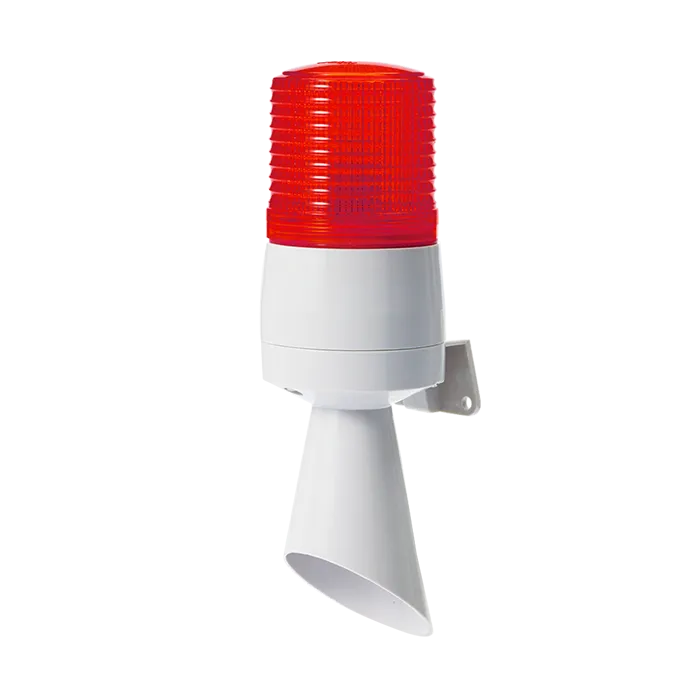

S60ADB
Bulb Steady/Flashing Signal Light with High Volume Built-in Buzzer Max.95dB
| Product Feature: | High Buzzer(Max. 95dB at 1m) |
| Voltage: | DC:12V,24VAC:110V,220V |
| Dimension: | Lens Diameter :Ø60(Approx.)Height : 233Depth : 86 |
| Materials: | Lens-ASHousing-ABSReflector-Heat resistant ABS |
| Protection rating: | IP54 |
Product Feature
- Ø60mm warning light with high volume built-in buzzer in a vertical configuration
- Cone-shaped horn helps diffuse sound to generate clear and distinctive sound signals
- Suitable for applications that require downward audible signals in elevated locations
- Buzzer sound volume (Max. 95dB at 1m)
- Employs a special filament to prevent damage caused by possible voltage variations
- Selectable between steady and flashing mode
- Flashing rate : 60-80 flashes/min
- Materials : Lens-AS, Body-ABS, Reflector-Heat resistant ABS
- Ambient operating temperature : -30°C to +50°C
- Protection Rating : IP54
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Bulb | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S60ADB | DC12V | 1A | 12V10W | T16x35 15S | 9 |  |
0.19kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 556mA | 24V10W | T16x35 15S | 10 | 0.19kg | |||
| AC110V | 160mA | 110V10W | T16x35 15S | 12 | 0.18kg | |||
| AC220V | 115mA | 220V10W | T16x35 15S | 13 | 0.18kg | |||
• Employs a special filament to prevent damage caused by possible voltage variations
• Selectable between steady and flashing mode
Sound Tone Combination of Standard Product
1 Buzzer Sound
Turu~ Continuous_2
Turu~ Continuous_1
