S125S

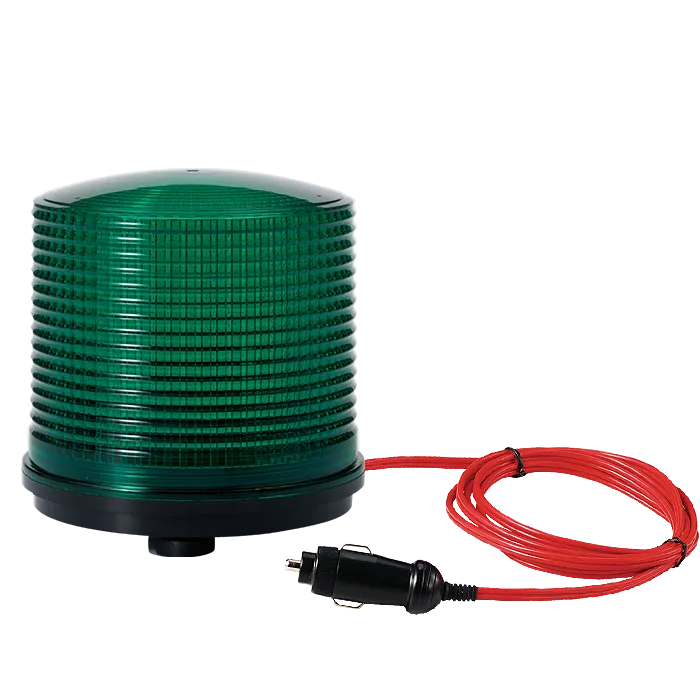

Ø125mm Xenon Lamp Strobe Light
| Voltage: | DC:12V-24VAC:110V,220V |
| Dimension: | Lens Diameter :Ø125(Approx.)Height : 125 |
| Materials: | Lens-ASHousing-ABS |
| Protection rating: | IP54 |
Product Feature
- Ø125mm xenon strobe signal light
- High efficiency strobe light that offers excellent outdoor visibility and long-distance signal light luminance close to natural light
- Lamp connector for convenient lamp replacement
- Flashing rate : 60-80 flashes/min
- Materials : Lens-AS, Housing-ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP54
- Certificates : CE Compliant
Product Specifications
| Model number | Voltage | Current | Xenon Lamp | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | ||||||
| S125S | DC12V-24V | Max.1.3A | 200V-550V | EUB0641-1A(G) U type | 48 | 0.37kg |  R-Red A-Amber G-Green B-Blue | |
| AC110V | 160mA | 0.32kg | ||||||
| AC220V | 140mA | 0.32kg | ||||||
※ CE Compliant: DC12V-DC24V
