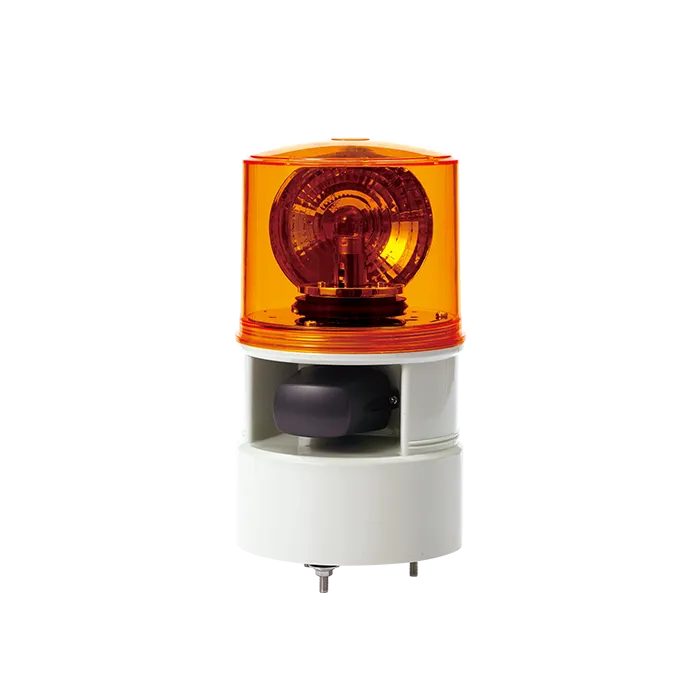

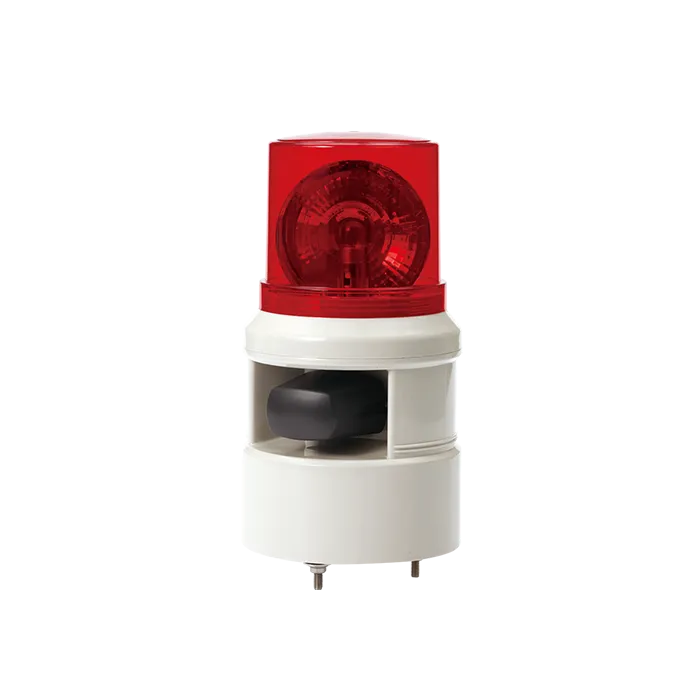

S125D
Bulb Revolving Light & Electric Horn Max.105dB
| Product Feature: | 15 Built-in Sounds (Max. 105dB at 1m), 5 User-Defined Voices (Max. 95dB at 1m) |
| Voltage: | DC:12V,24VAC:110V,220V |
| Dimension: | Lens Diameter : Ø115Body Diameter : Ø119Height : 215 |
| Materials: | Lens-ASHousing-ABSReflector-Heat resistant ABS |
| Protection rating: | IP54 |
Product Feature
- Ø125mm Warning Light and Electric Horn Combination provides both audible and visual signaling capability in one unit
- Can select the proper signaling from a variety of light source and sound tone
- Materials : Lens-AS, Housing-ABS, Reflector-Heat resistant ABS
- Revolving speed : 120-140RPM
- Ambient operating temperature : -20°C to +50°C
- Protection rating : IP54
- Certificates : CE
Product Specifications
| Model number | Voltage | Current | Bulb | Sound Pattern and Volume | Certificates | Weight | Color | ||
|---|---|---|---|---|---|---|---|---|---|
| Spec | Standard | Parts no | |||||||
| S125D | DC12V | 1.2A | 12V10W | T16x35 15S | 9 | • WS-5 Warning sounds: Max.105dB • WM-5 Melodies: Max.105dB • WA-5 Alarms: Max.103dB • WV-5 Customizable sounds: 91-100dB |  | 1.00kg |  R-Red A-Amber G-Green B-Blue |
| DC24V | 830mA | 24V10W | T16x35 15S | 10 | 1.00kg | ||||
| AC110V | 190mA | 12V10W | T16x35 15S | 9 | 1.41kg | ||||
| AC220V | 95mA | 12V10W | T16x35 15S | 9 | 1.41kg | ||||
• Revolving speed: 120-140RPM
• Ambient operating temperature: -20°C to +50°C
※ CE compliant: DC24V, AC110V, AC220V
※ Max.built-in volume feature is based on WS-Ch3 / WM-Ch4 / WA-Ch1.
※ In case of customized WV 5 tone type, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
Support Customizable Voices(Channel1~5)
5 Warning Sounds
Fire.A-ANG
Channel.1
Emergency WA-U(Yelp)
Channel.2
Ambulance PI-PO(Hi-low)
Channel.3
Machinery Fault
Channel.4
High Expansion
Channel.5
5 Melodies
Sweet Home
Channel.1
For Elise
Channel.2
Cuckoo's Waltz
Channel.3
Piano Sonata
Channel.4
Turkish March
Channel.5
5 Alarms
Beep Intermittent
Channel.1
Door Chime
Channel.2
Phone Ring
Channel.3
PI.PI.PI. Short Interval
Channel.4
Tripping Beat
Channel.5
