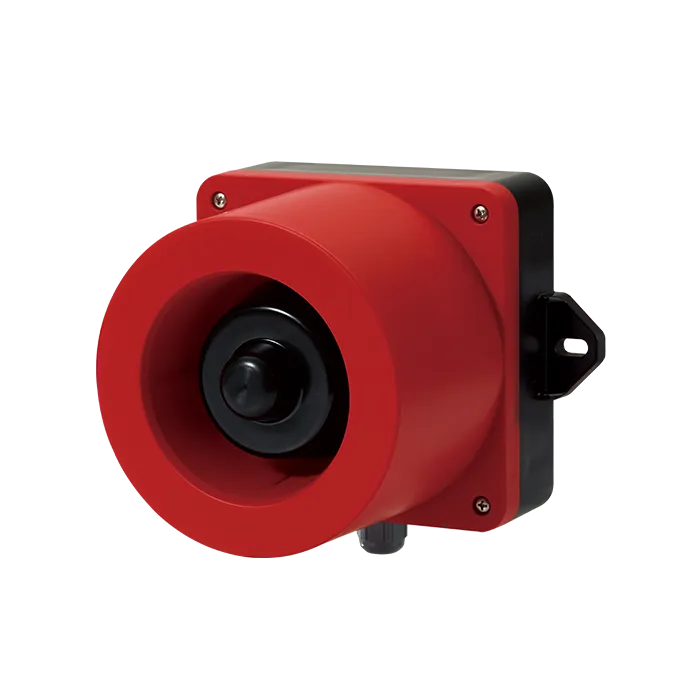

QWH50
Wall Mount Electronic Sounders with Pre-recorded Special Warning SoundWeatherproof Alarm Horns & Sirens / Audible Alarm Max.123dB
| Product Feature: | 31 Built-in Sounds (Max.123dB at 1m), 30 MP3 User-Defined Sounds (Max.115dB at 1m) |
| Voltage: | DC:12V-24VAC:110V-220V |
| Dimension: | Ø168×222Depth : 163 |
| Materials: | Horn-PC+ABSHousing-PC+ABS |
| Protection rating: | IP66 |
Product Feature
- Signal fit for the specific environment and condition
- Options to select between 31 special warning sounds included in the pre-recorded sound type and SDcard(MP3) type
- Volume adjustment and sound selection switches located inside the unit. SDcard in the unit offers convenient operation
- SDcard type allows the user to input the proper voice messages for specific operating conditions
- The SDcard type 31 Special alarms built in which includes the voice alert from the SDcard (MP3). 31 special warning sounds are built both in pre-recorded sound type and SDcard type
- Offers both Binary and Bit input mode options (only the SDcard type has the bit input)
- Tightly sealed structure that blocks water and dust with IP66 protection rating suitable for outdoor installation
- Can be used in extreme environmental conditions such as the arctic where temperatures can reach -50°C
- Cable entry: PG 13.5
- Ambient operating temperature :
-30°C to +50°C(Standard)
-50°C to +50°C(Low temperature type only DC)
-20°C to +50°C(SD Card type) - Certificates : CE Compliant, UL Listed
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight |
|---|---|---|---|---|---|
| QWH50 | DC12V-24V | Max.3.6A | • Bit Input : 5Ch(SD Card) • Binary Input : 31Ch • Warning sounds : Max.123dB(Based on Ch16) • MP3 : Max.115dB |  | 2.7kg |
| AC110V-220V | Max.730mA | ||||
| QWH50SD | DC12V-24V | Max.3.6A | 2.8kg | ||
| AC110V-220V | Max.730mA |
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ UL Listed: DC12V-24V
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
Special Alarm Type
Rel rel rel
Slow Ambulance PI-PO
Oit Oit warning sound
Emergency WA-U(Yelp)
Pi- buzzer
7 Short PI. / 1 Long
Pi o Pi o
Phone Ring
Pi- buzzer
Pi pi pi short
Di o Di o 2 tones buzzer
Oit Oit warning sound
Slow Ambulance PI-PO
Slow Di o Di o
Fast Li o li o
Fire.A-ANG
Fast Ambulance PI-PO
Slow Ambulance PI-PO
Ri ro ri ro warning sound
Repeat Di-o 3 times
Fire.A-ANG
Ambulance PI-PO
Slow Fire.A-ANG
Pi-pi- buzzer low frequency
Pi-pi- buzzer high frequency
Di-di- buzzer high frequency
Di-di- buzzer low frequency
Rising Po-ong
Fast Ambulance PI-PO
Rising frequency
Repeat A-ANG
