QMCL60
Ø60mm Multiple Color LED Steady Signal Light Max.80dB
| Product Feature: | Buzzer volume fixed type (Max. 80dB at 1m) : optionally available |
| Voltage: | DC:12V,24V |
| Dimension: | Lens Diameter :Ø60(Approx.)Height : 80 |
| Materials: | Lens-PCBody-ABS |
| Protection rating: | IP65 |
Product Feature
- Helps reduce the costs of installation by reducing the space needed to emit seven color signals in a single warning light

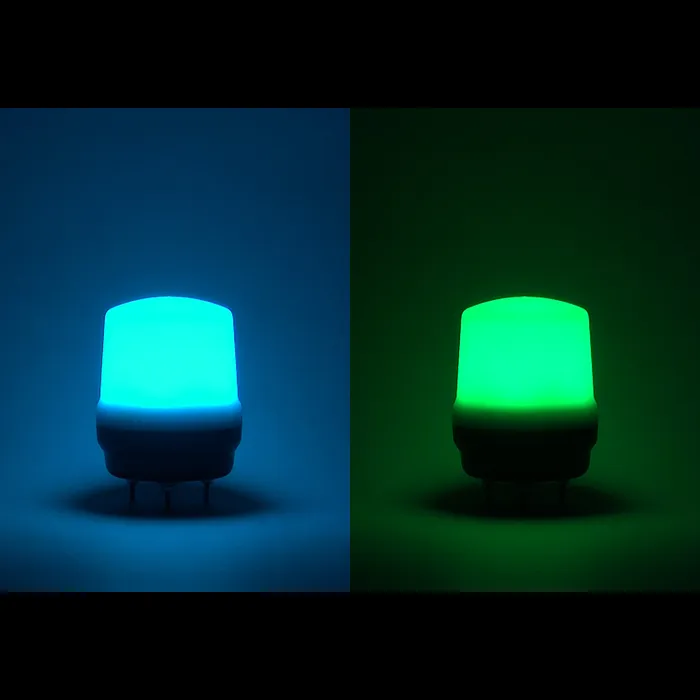

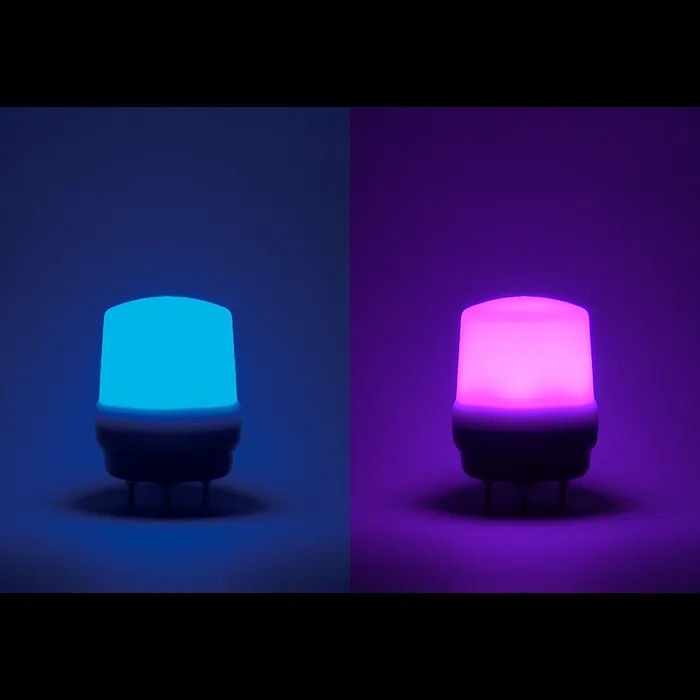

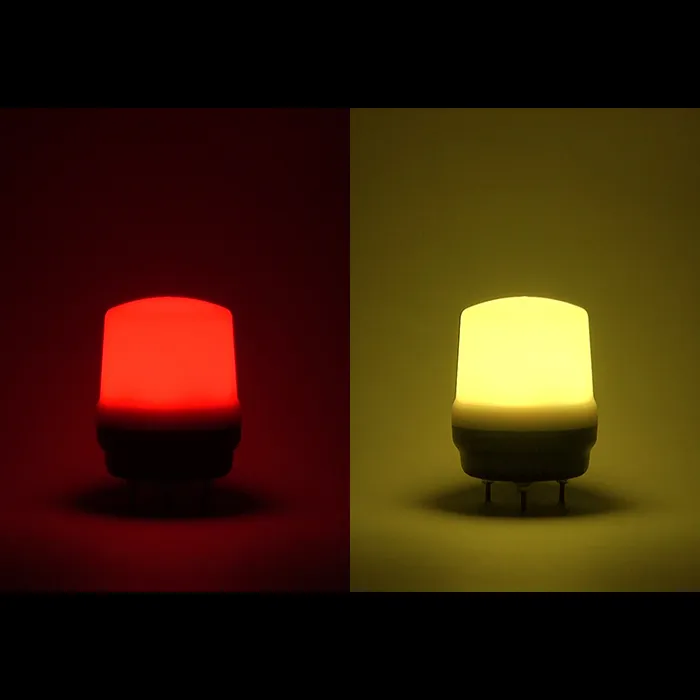

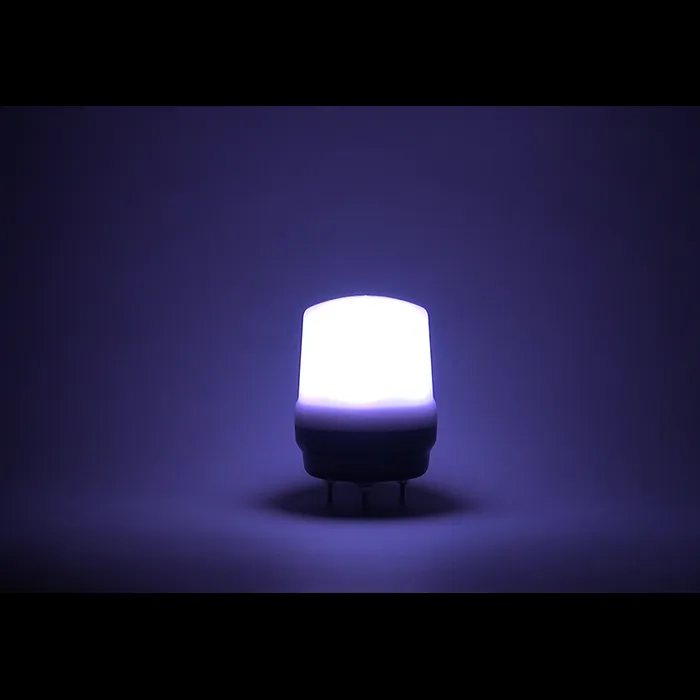

- Milky translucent color when off, the soft LED illuminates designated colors when on
- Ambient operating temperature : -30°C to +50°C
- M12 connector type is optionally available(Female M12 connector is not provided)
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| QMCL60 | DC12V | 170mA |  | 0.12kg | 7 Colors |
| DC24V | 70mA | 0.12kg |
Sound Tone Combination of Standard Product
Buzzer Tone
Pi-- Pi-- slow
Download
PDF Catalogue
Operating Manual
External View Drawing(PDF)
External View Drawing (Auto-CAD)
3D drawing (STEP)
