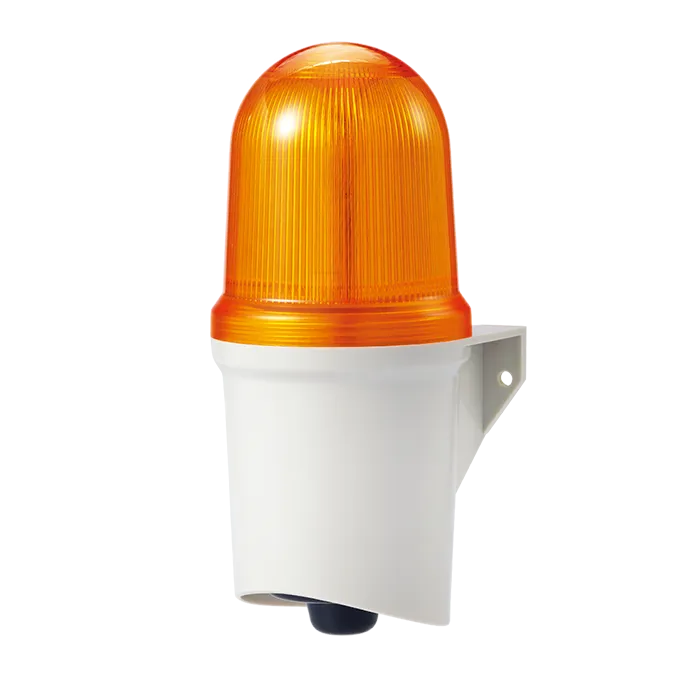

QAD100H
Wall Mount Type LED Steady/Flash & Electric Horn Max.100dB
| Product Feature: | 30 Built-in Sounds (Max. 100dB at 1m), 30 MP3 User-Defined Sounds (Max. 95dB at 1m) |
| Voltage: | DC:12V-24VAC:110V-220V |
| Dimension: | Lens Diameter :Ø100(Approx.)Height : 215Depth : 109 |
| Materials: | Lens-PCHousing-ABS |
| Protection rating: | IP65 |
Product Feature
- The combination of warning light and horn allows for both visual and audible signal transmission at once
- Flashing rate: 60-80 flashes/min(Built-in Steady-Flash selection switch)
- Appropriate sound tones can be chosen depending on the various working environments among various available sound tones
- The sound tone selector and volume controller in front of the device allow for convenient use
- SDcard type allows user-defined sound tone
- Built-in 30 sound tones, Support Binary and Bit input modes
- Bit input mode consists of 5 sound types with 6 groups. Choose one of the groups to play 5 sounds. (MP3 does not support group)
- MP3 support
- Materials: Lens - PC, Housing - ABS
- Ambient operating temperature : -30°C to +60°C
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Sound Pattern and Volume | Certificates | Weight | Color |
|---|---|---|---|---|---|---|
| QAD100H | DC12V-24V | Max.1A | · Bit Input: 5Ch · Binary Input: 30Ch · Built-in sounds: Max.100dB (Based on WA-Ch4) · MP3: Max.95dB |  | 0.92kg |  R-Red A-Amber G-Green B-Blue |
| AC110V-AC220V | Max.360mA | 0.92kg |
ㆍBuilt-in sound/MP3
※ DC type model has a free-voltage range of 12V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ When playing MP3 files, there may be difference of volume depending on user’s audio file type.
Sound Tone Combination of Standard Product
5 Warning Sounds
Fire.A-ANG
Emergency WA-U(Yelp)
Ambulance PI-PO(Hi-low)
Machinery Fault
High Expansion
5 Melodies
Sweet Home
For Elise
Cuckoo's Waltz
Piano Sonata
Turkish March
5 Alarms
Beep Intermittent
Door Chime
Phone Ring
PI.PI.PI. Short Interval
Tripping Beat
5 Special Warning Sounds (1st Group)
Fire.A-ANG
Abandon Alarm
Machinery Fault
High Expansion
7 Short PI. / 1 Long
5 Special Warning Sounds (2nd Group)
Rel rel rel
Slow Ambulance PI-PO
Emergency WA-U(Yelp)
Phone Ring
Fire.A-ANG
5 Special Warning Sounds (3nd Group)
Oit Oit warning sound
Pi o Pi o
Slow Di o Di o
Li long Li ling
911 Siren
