Q80L
Ø80mm LED Steady/Flashing Signal Light Max.80dB
| Product Feature: | Buzzer volume fixed type (Max. 80dB at 1m) : optionally available |
| Voltage: | DC:12V-24VAC:110V-220V |
| Dimension: | Lens Diameter :Ø80mm(Approx.)Height : 120 |
| Materials: | Lens-PCHousing-ABSmounting bracket-PC |
| Protection rating: | IP65 |
Product Feature
- Small-sized signal light of 80mm with attractive appearance

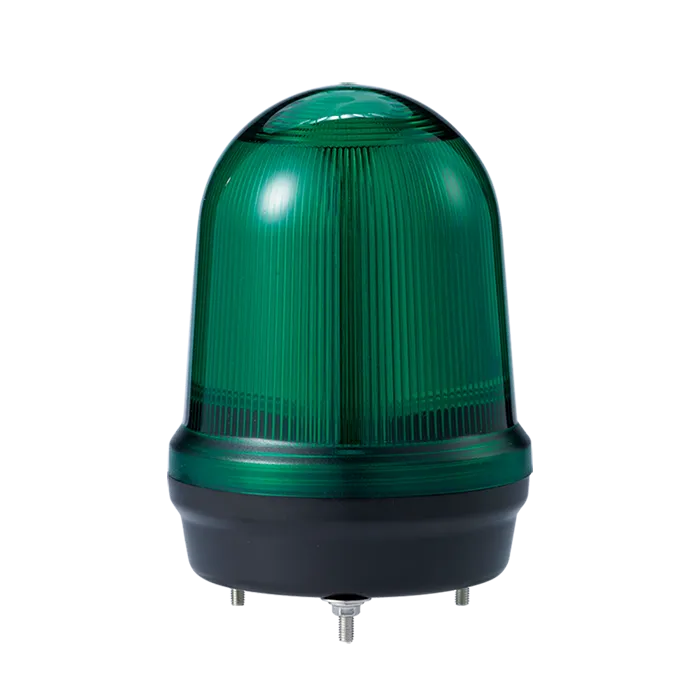

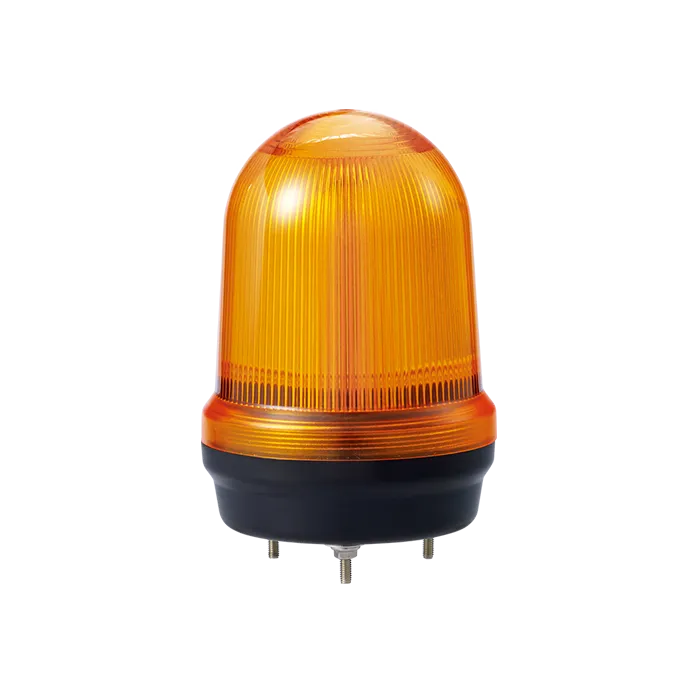

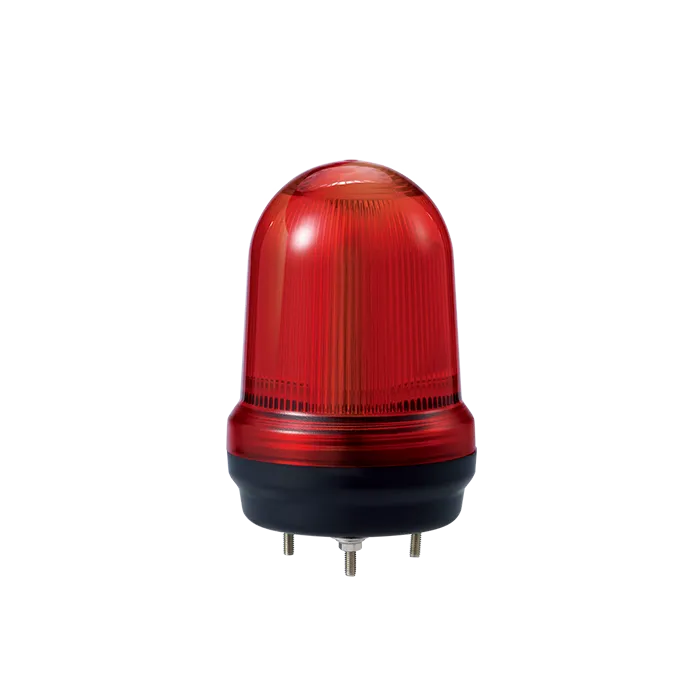

- Direct mount type with the three bolts/screws located on the bottom of the product
- Materials : Lens-PC, housing-ABS, mounting bracket-PC
- Features high visibility with special diffusive lens and direct LED light distribution system
- Built-in buzzer available (Volume : Max. 80dB at 1m)
- Built-in switches for steady and flashing light function mode
- Flashing rate : 60-80 flashes/min
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP65
- Certificates : CE Compliant, UL Listed
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| Q80L | DC12V-DC24V | Max.205mA |  | 0.15kg |  R-Red A-Amber G-Green B-Blue |
| AC110V-AC220V | Max.65mA |

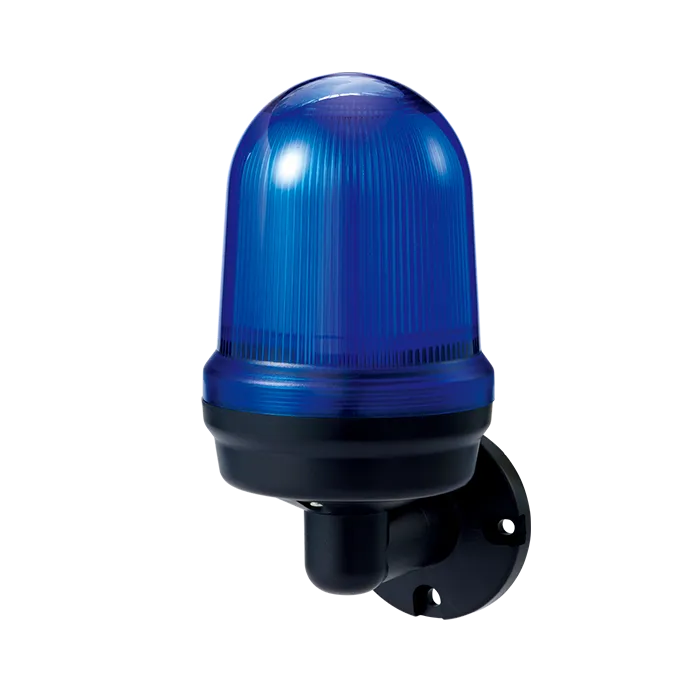

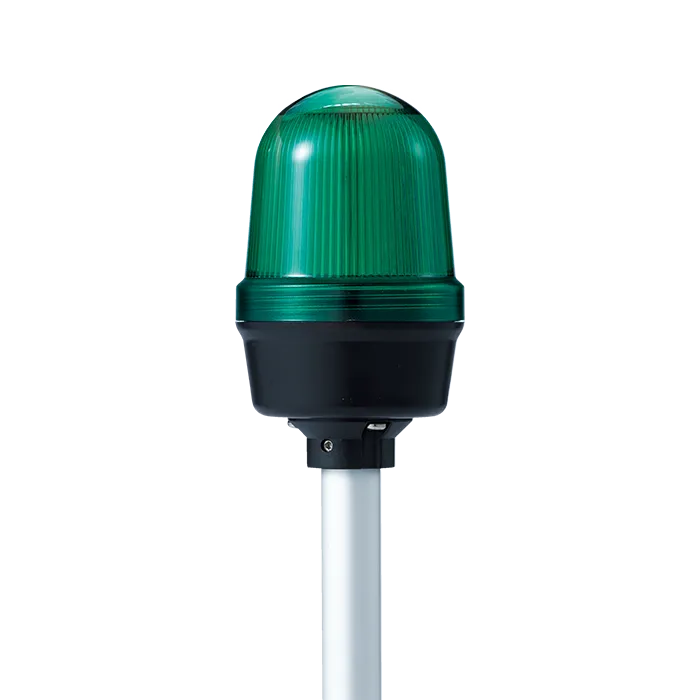

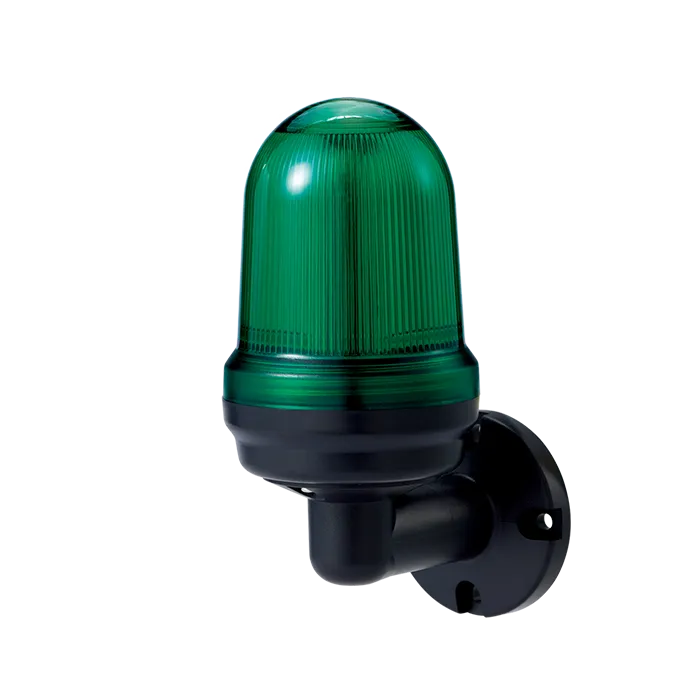

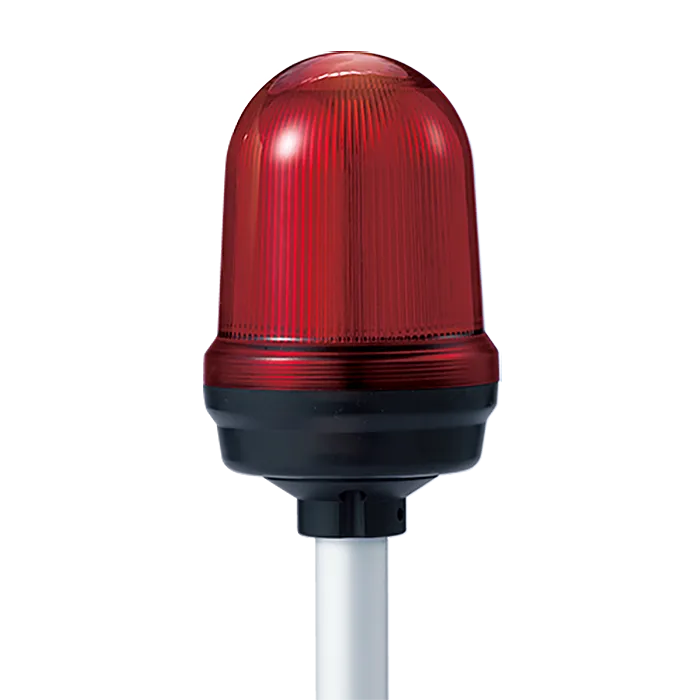

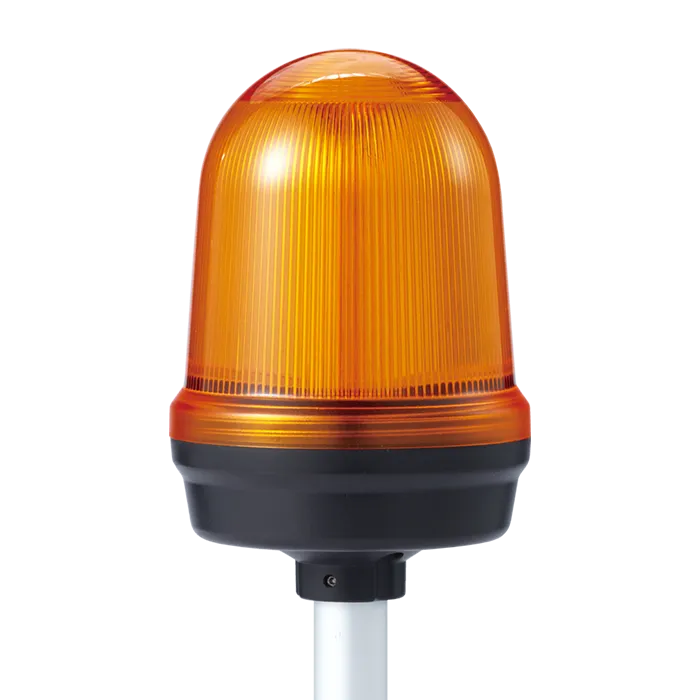

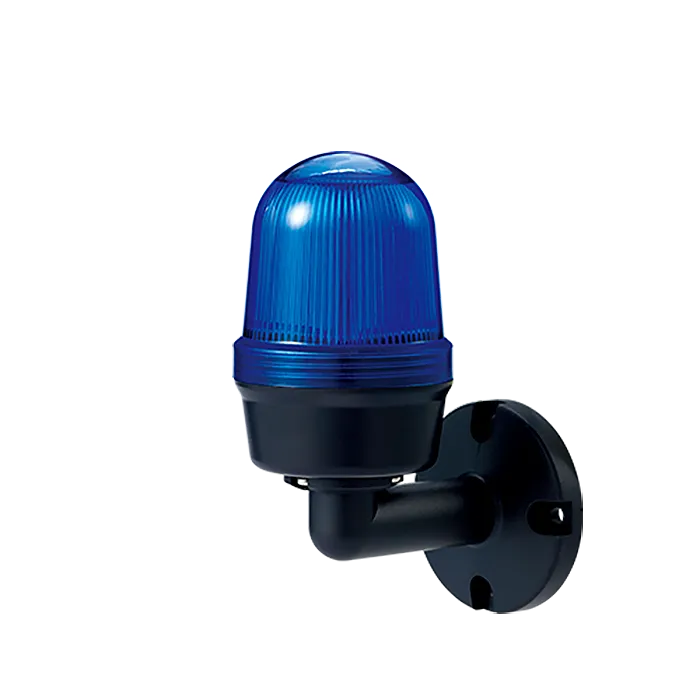

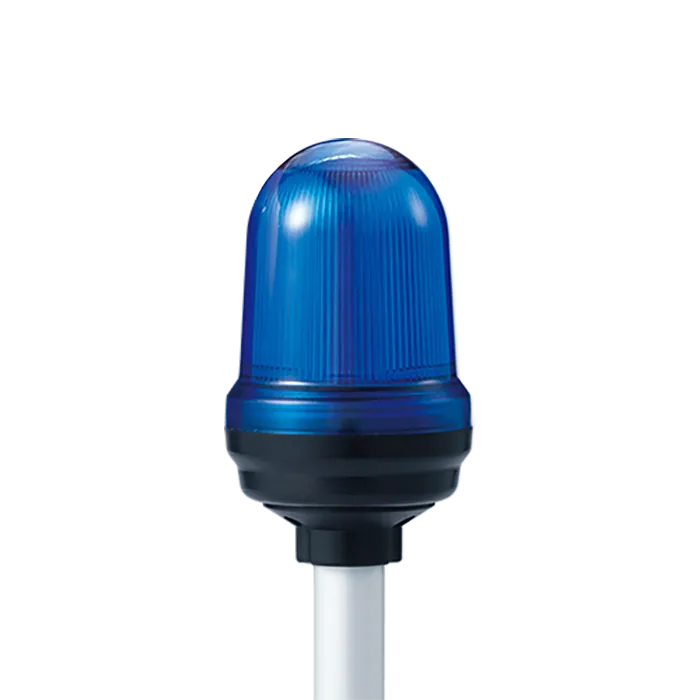

ㆍVarious mounting options are available
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ UL Listed: DC24V
