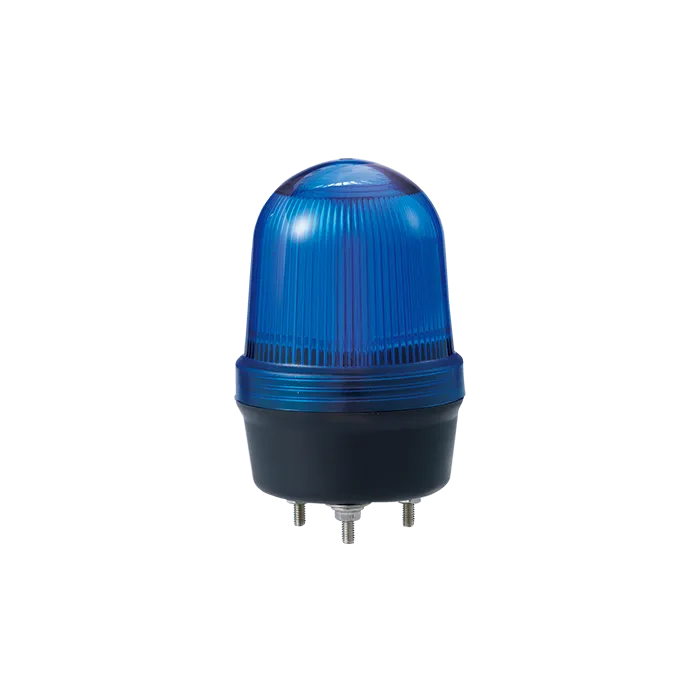

MFL60
Ø60mm Multiple Function LED Signal Light Max.80dB
| Product Feature: | Multiple Function LED Signal Light Buzzer volume fixed type (Max. 80dB at 1m) : optionally available |
| Voltage: | DC:12V-24VAC:110V-220V |
| Dimension: | Lens Diameter :Ø60(Approx.)Height : 100 |
| Materials: | Lens-PCHousing-ABS |
| Protection rating: | IP65 |
Product Feature
- Product has multi functions of LED Steady/Flashing, strobe, and simulated revolving
- Operating options with switches inside product or external connect
- Shock and vibration-resistant, maintenance reduced with long-lasting energyefficient LED light bulb
- Built-in buzzer available(Volume : Max. 80dB at 1m)
- Flashing type(LF) flashing rates : 60-80 flashes/min
- Strobe type(LS) flashing rates : 70-80 flashes/min
- Simulated revolving type(LR) flashing rates : 120-140 flashes/min
- Materials : Lens-PC, housing-ABS
- Ambient operating temperature : -30°C to +50°C
- Protection rating : IP65
- Certificates : CE Compliant
- Compliant with RoHS directive
Product Specifications
| Model number | Voltage | Current | Certificates | Weight | Color |
|---|---|---|---|---|---|
| MFL60 | DC12V-24V | Max.118mA |  | 0.21kg |  R-Red A-Amber G-Green B-Blue |
| AC110V-220V | Max.60mA | 0.32kg |
※ DC type model has a free-voltage range of 10V-30V.
※ AC type model has a free-voltage range of 100V-240V.
※ UL Listed: DC12V-24V
