EPLUS

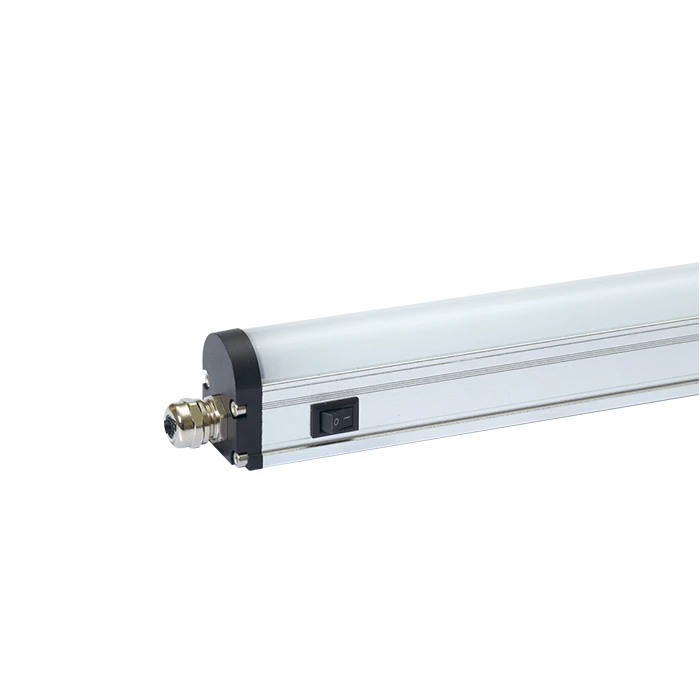

Industrial LED Work Lights, IP20
| Product Feature: | Illumination(at 1m) : DC- 200Lux |
| Voltage: | DC:24V |
| Dimension: | 30(W)×38(H)×316~446(L) |
| Materials: | Lens-PCHousing-Al |
| Protection rating: | IP20 |
Product Feature
- Economical lighting with excellent vibration resistance and heat dissipation
- Low power consumption and long life by using high-efficiency LED
- A switch-equipped product with a U-shaped globe that can control power through an ON/OFF switch
- Among body lengths of 380/550mm, select a suitable specification according to the lighting range and installation space
Product Specifications
| Optics specifications | |||||
|---|---|---|---|---|---|
| Model | EPLUS300 | EPLUS450 | |||
| Lens color | Translucent | ||||
| Light color(Standard) | Cooldaylight | ||||
| Color temperature(Standard) | 6,000~6,500K | ||||
| Luminous flux | DC | 800lm | 1,000lm | ||
| Illumination(at 1m) | DC | 200Lux | 200Lux | ||
| Specifications | |||||
| Model | EPLUS300 | EPLUS450 | |||
| Rated voltage | DC24V | ||||
| Range for operation voltage | DC24V | ||||
| Power consumption | DC24V | 8W | 10W | ||
| Insulation resistance | Min. 100MΩ(500V DC mega ohm meter) | ||||
| Withstanding voltage | DC: 500VAC, 60Hz, 1 minute/AC: 1,500VAC, 60Hz, 1 minute | ||||
| Operating temperature | -25℃ ~ +55℃ | ||||
| Waterproof | IP20 | ||||
| Materials | Housing-Al, Lens-PC | ||||
| Certificates |  | ||||
| Weight(approx.) | 0.22kg | 0.23kg | |||
Download
PDF Catalogue
Operating Manual
External View Drawing(PDF)
External View Drawing (Auto-CAD)
