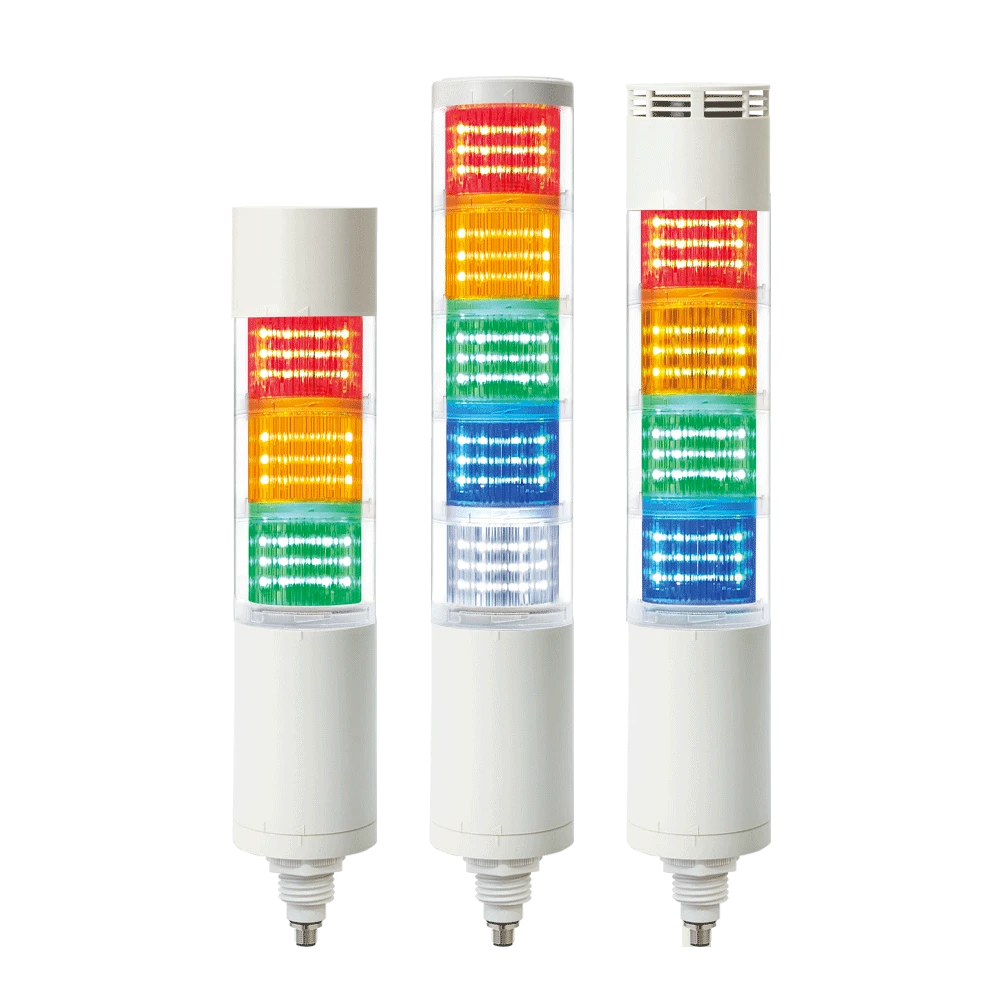

QTG70L-IOL

Ø70mm IO-Link Programmable LED Tower Light Max.100dB

Product Feature:	Programmable LED Signal Tower Light with IO-Link Technology
Voltage:	DC:24V
Dimension:	Diameter : Ø70Height : 175-375
Materials:	Housing-ABSLens-PC
Protection rating:	IP65(Standard/Waterproof Buzzer)Non-Waterproof(High-Volume Buzzer)

Product Feature

Modular LED steady/flashing type signal tower lights
Excellent visibility from a distance with the use of a special color diffusing lens
The addition of modules and change in color arrangement can be achieved without the use of tools by using the Lock-type structure
Supports Four Operating Modes for Versatile Environmental Adaptability
- Simple Mode: Enables basic on/off control of individual light sources.
- Advanced Mode: Advanced Mode: Allows configuration of on/off and strobe timing for each light source.
- Level Mode: Suitable for process operations using percentage-based input to control light output.
- Demo Mode: Demonstrates various functions sequentially.
Supports Seven Light Source Operations for Enhanced Visibility (On / Slow Blink / Medium Blink / Fast Blink / Strobe 1, 2, 3)
Advanced LED signal tower light integrated with IO-Link technology
Ideal for next-generation smart manufacturing systems (Industry 4.0)
IO-Link Version: V1.1
Data transmission speed: 38,400 bps(COM2)
Connector: M12-5Pin(Male)-Class A
High-volume buzzer Max. 100dB(at 1M), Waterproof buzzer Max. 85dB(at 1M)
Plug & Play functionality enabled by international standard M12 connector

Product Specifications

Model number	Layers	Voltage	Certificates	Weight	Color
QTG70L-IOL Steady/Flashing QTG70L-IOL-HBZ Steady/Flashing w/ built-in high volume buzzer QTG70L-IOL-WBZ Steady/Flashing w/ built-in waterproof buzzer	1	DC24V	-	0.37kg	R-Red
	2			0.52kg	R-Red G-Green
	3			0.67.kg	R-Red A-Amber G-Green
	4			0.82kg	R-Red A-Amber G-Green B-Blue
	5			0.97kg	R-Red A-Amber G-Green B-Blue W-White
