QDML-IOL

Multiple ColorProgrammable LED Work Light with IO-Link Technology

Product Feature

State-of-the-art multi colored LED Work Light with IO-Link technology
Signaling device optimized for Industry 4.0
Plug & play technology applied for immediate operation when mounted on an international standard M12 connector
8 types of preset color modes and user-defined settings
Convenient environment setting possible via IO-Link
Available in a variety of lengths from 125mm to 900mm, allowing customers can choose an appropriate options
High protection rating of IP67 allows use in various environments
Ambient operating temperature: 0°C to +50°C

Product Specifications

Optics Specifications
Model number	QDML-IOL-125	QDML-IOL-250	QDML-IOL-480	QDML-IOL-700	QDML-IOL-910
Lens color	Transparent

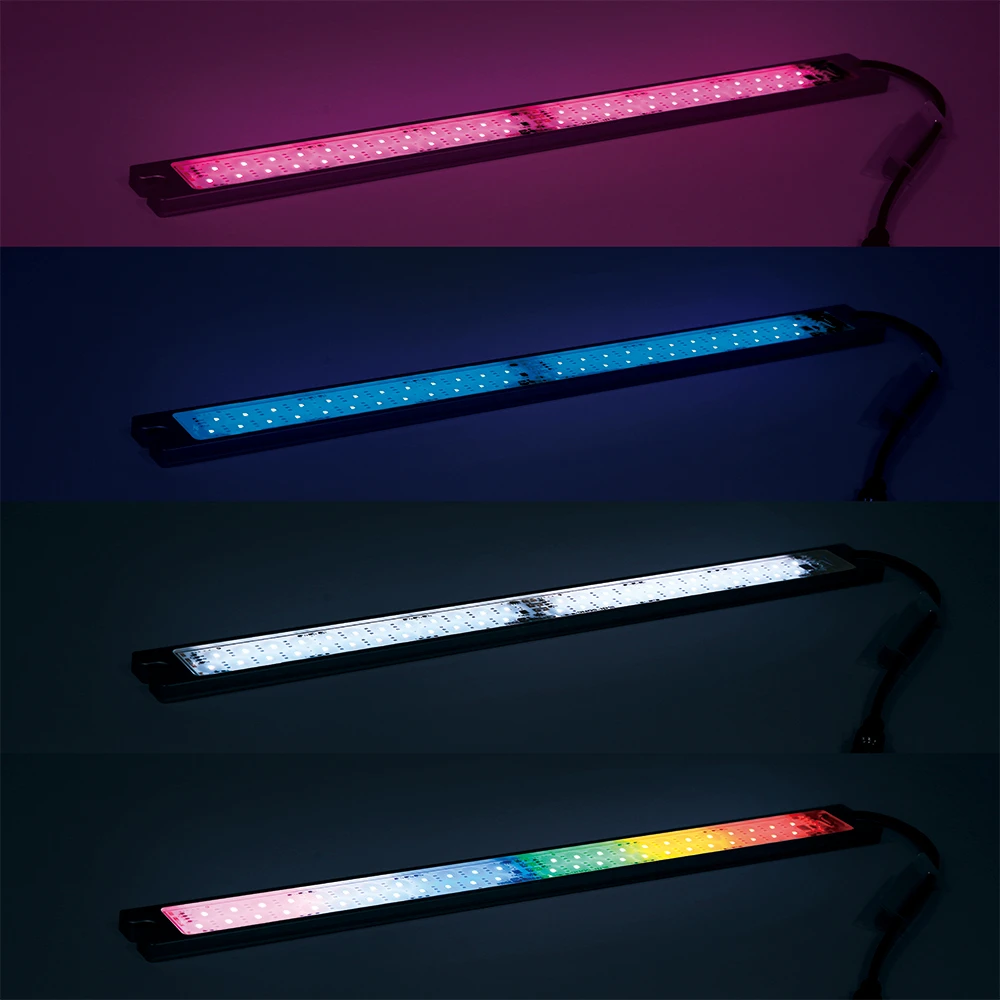

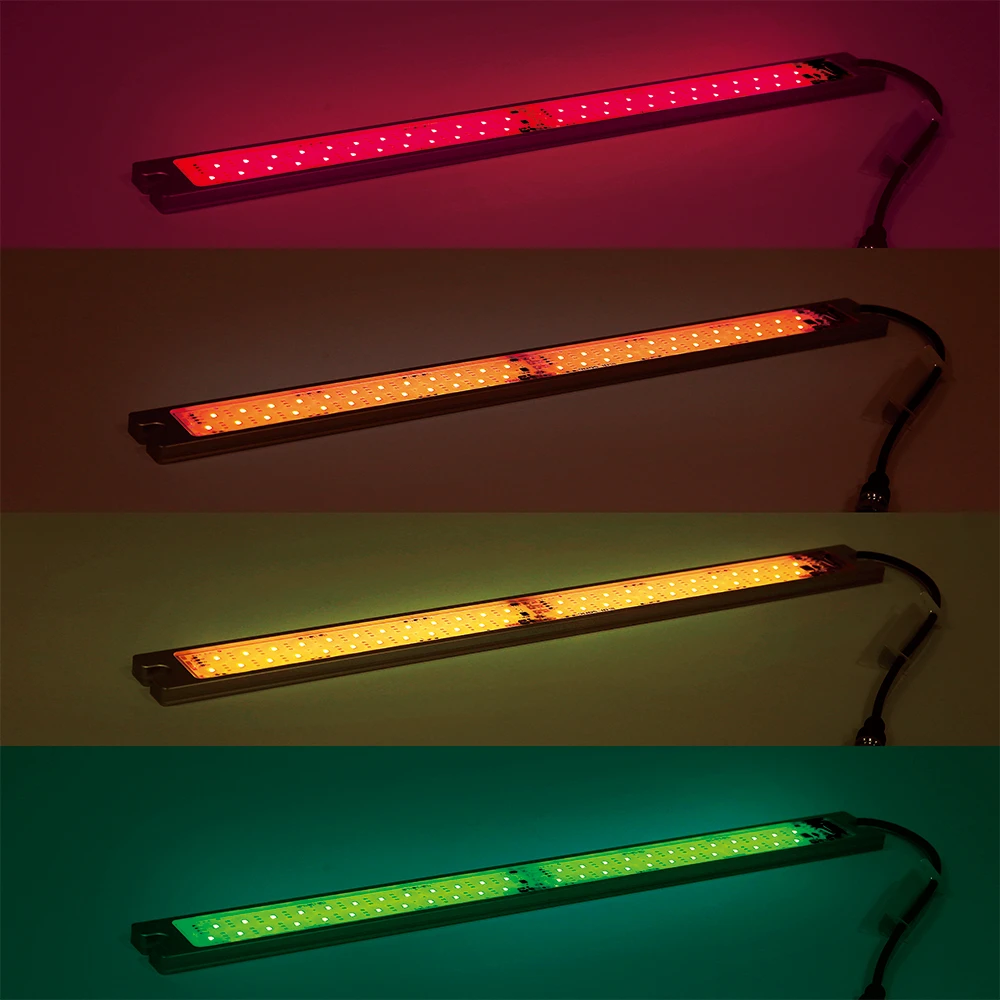

Light color	Red, Green, Yellow, Blue, White, Orange, Pink, Customization
Deflection angle FWHM	120°
Specifications
Model number	QDML-IOL-125	QDML-IOL-250	QDML-IOL-480	QDML-IOL-700	QDML-IOL-910
Voltage	DC24V
Range for operation voltage	DC18V-DC30V (Supply Class 2)
Power consumption	3W	5W	9.1W	13.4W	17.5W
Insulation resistance	Min. 100MΩ (500V DC mega ohm meter)
Withstanding voltage	DC: 500VAC, 60Hz, 1 minute/AC: 1,500VAC, 60Hz, 1 minute
Operating temperature	0℃ to +50℃
Protection rating	IP67
Materials	Housing-Al, Lens-PU
Certificate
Weight(Approx.)	0.115kg	0.21kg	0.39kg	0.55kg	0.70kg
